Greenlee CTR100 Roller, Cable - Medium Duty (PKGD)

Manufacturer: Greenlee | Catalog # CTR100 | Codale Part # 3551009
$1,299.50/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

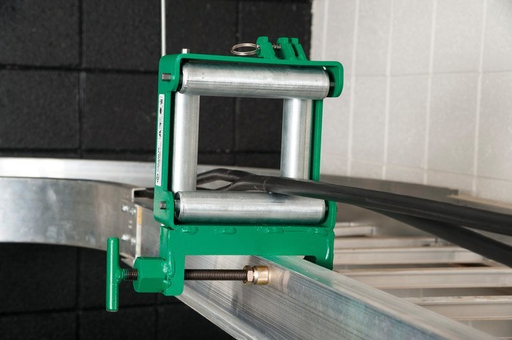

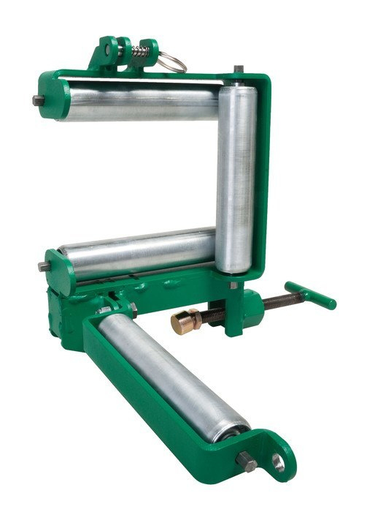

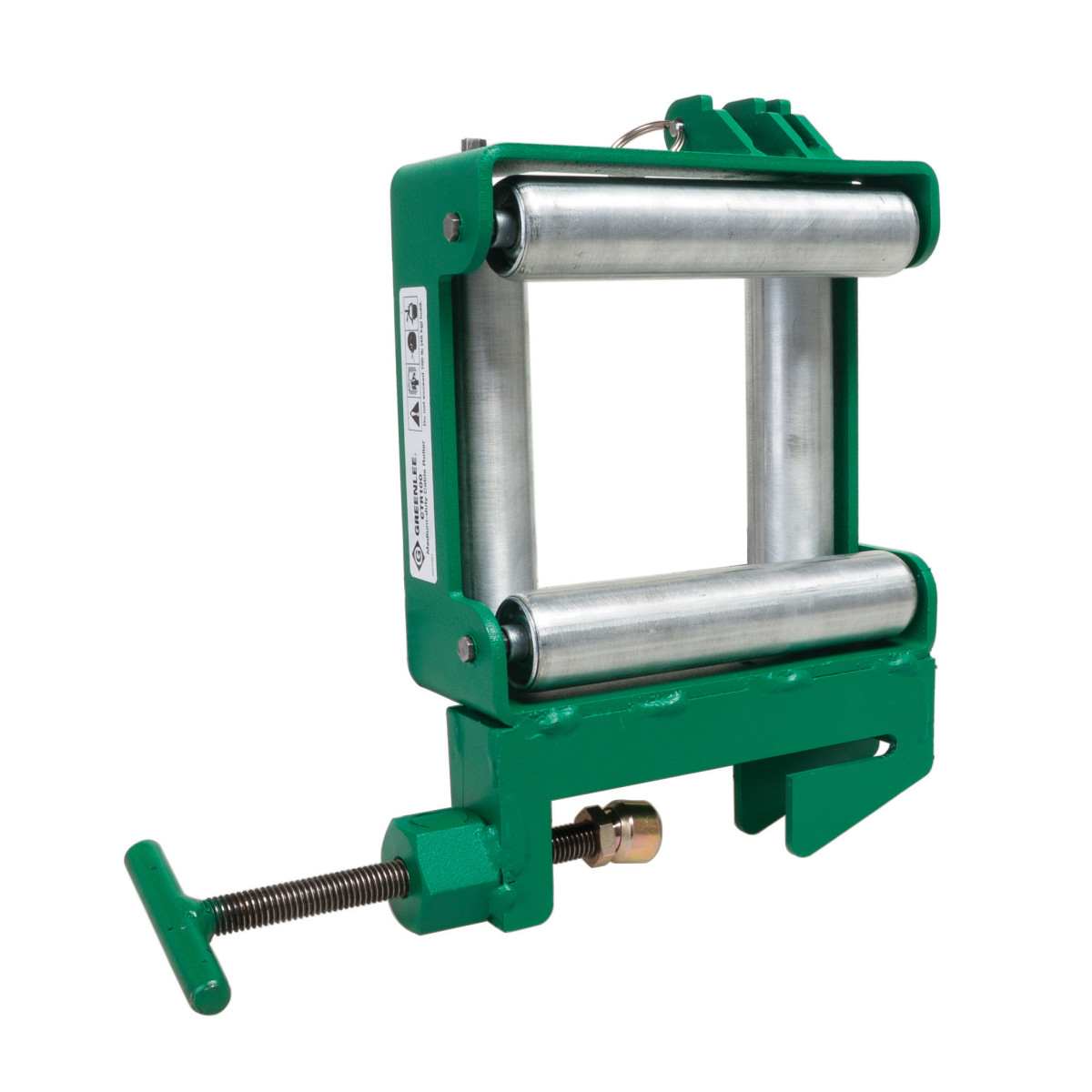

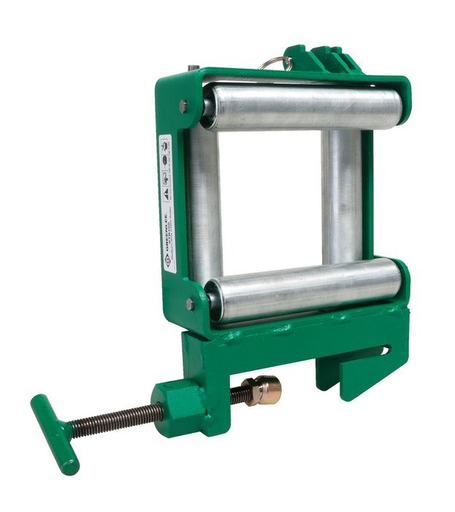

Medium duty cable tray roller. Compact design fits into tight spaces. Overlapping roller design prevents rope or cable from potential pinch points. 2x faster setup and disconnect. No loose pieces. Quick adjust push button to tightly fasten onto tray. 4 conveyer roller guide with retained spring pull-pin release to easily remove cable. Closed conveyer roller guide that traps cable within guide without damaging cable jacket. Easily handle forces of up to 100 lbs. Designed and assembled in USA. Application: use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90. bends and offsets.

Technical Information

Applications
For use to Assist Pulling Cables Along Non Basket-Style Cable Trays
Cable Size
4 in
Capacity
100 lb
Material
Steel
Type
Medium Duty

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310028109
Product UPC
78331002810
Weight
9 lb

Dimensions

Length
9-1/4 Inch
Overall Length
13 3/4 in
Width
3-1/2 in

Certifications and Compliance

Country of Origin
USA
Features
  • 2 times faster setup and disconnect
  • Cable pulling tool comes with no loose pieces
  • Quick adjust tilted thread nut to tightly fasten onto tray
  • 4 conveyer roller guide with retained spring pull-pin release to easily remove cable
  • Closed conveyer roller guide that traps cable within guide without damaging cable jacket
  • Easily handle forces of up to 100 lbs. (45.4 kg)
  • Designed and Assembled in USA
Application

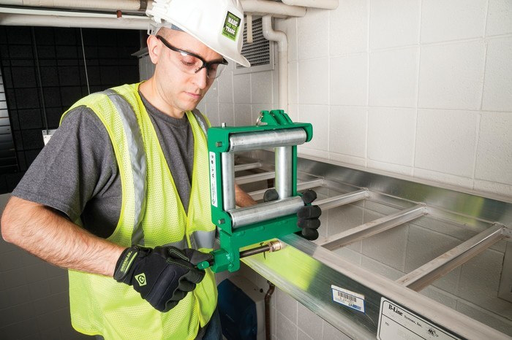

  • Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90° bends and offsets.
