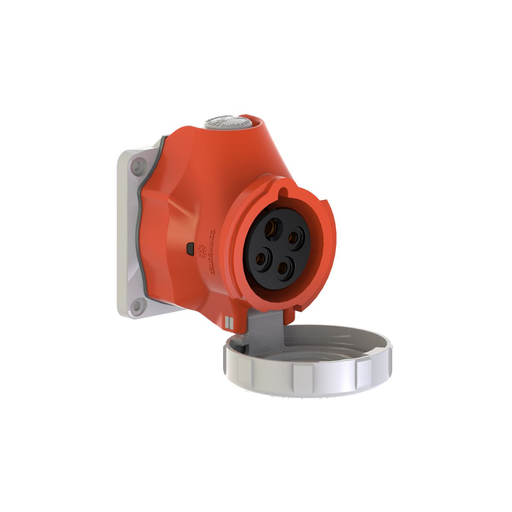

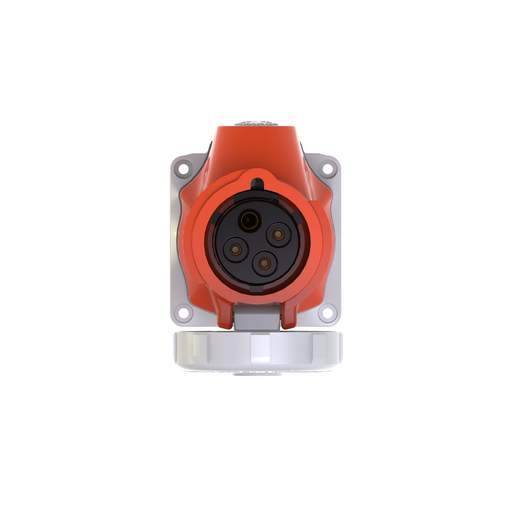

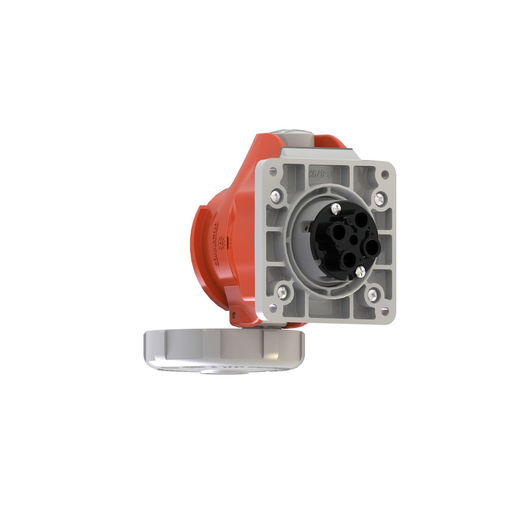

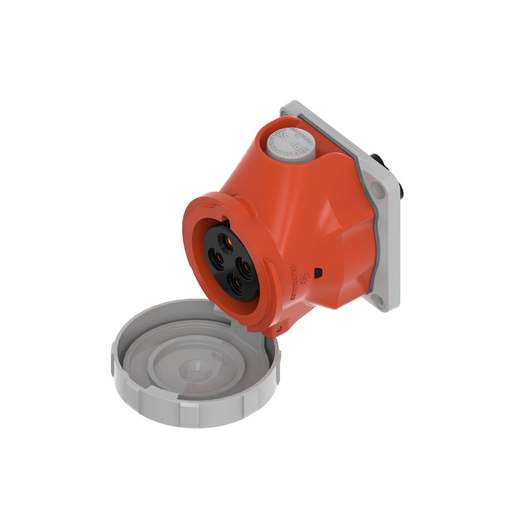

Hubbell HBLS430R7W IEC Pin & Sleeve Receptacle, Switched, 30A 480V 3Pole 4Wire Grounding, NEMA-4X/IP69k

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLS430R7W | Codale Part # 3551536
$937.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Pin and Sleeve Devices, Switched, IEC 309, Receptacle, 30A 480V, 3-Pole 4-Wire Grounding, NEMA 4X/IP67, Watertight

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Conductor Size
12-8 AWG
Cord Type
All Portable
Current
30 Amp
Material
Brass
Mounting Type
Cord
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
Standard Sized
Style
IP69k NEMA 4X
Tc Connection
Pressure Screw Terminal
Type
Switched
Voltage
480 Volt
Wattage
14400 Watt
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
IEC 309 Pin and Sleeve

General Product Info

12-Digit UPC
783585550480
Color
Red
Product UPC
78358555048
Weight
1.7500 lb

Dimensions

Height
4.62 Inch
Length
6 Inch
Width
5.6 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Mates with existing installed base of IEC 60309-2 pin and sleeve devices
  • Approved as a diconnecting means for motor circuits and branch circuits
  • UL Type 4X, 12 and IP69k environmental ratings
  • Impact and corrosion-resistant PBT that is color coded by voltage
  • Unswitched ground and power indicating LED lights
