Product image for Burndy QB26 Copper Terminal, Side Entrance, 1 Hole, 1/0-2/0 AWG (Str), 3/8" Stud, 1 Screw
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Burndy QB26 Copper Terminal, Side Entrance, 1 Hole, 1/0-2/0 AWG (Str), 3/8" Stud, 1 Screw

Manufacturer: Hubbell-Burndy | Catalog # QB26 | Codale Part # 3551677
$120.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Copper Terminal, Side Entrance, 1 Hole, 1/0-2/0 AWG (Str), 3/8" Stud, 1 Screw

Technical Information

Applications
For Joining A Range Of Copper Cable At Right Angles To Terminal Blocks
Conductor Size
2/0 AWG
Conductor Type
CU C Str-Size
Connection Type
Right Angle
Material
Copper
Number of Conductors
1
Number of Holes
1 Hole
Plated?
No
Plating Type
Unplated
Stud Size
3/8 in
Type
Bolted Lugs & Terminals

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810324288
Product UPC
78181032428
Weight
0.23 lb

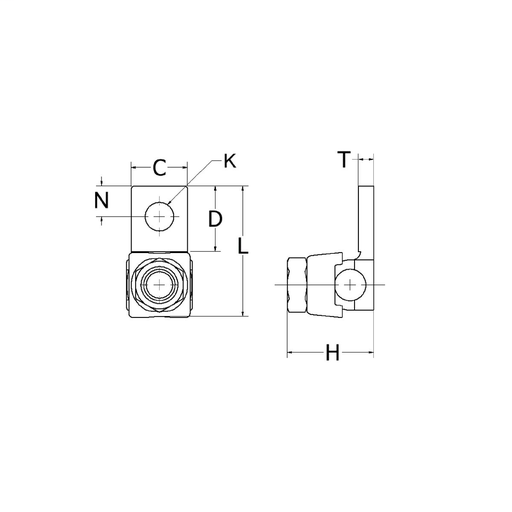

Dimensions

Diameter
1 Inch
Height
1.13 Inch
Hole Size
0.41 in
Length
1.81 Inch
Overall Length
46 mm
Pad Width
0.81 in
Thickness
7/32 in
Width
0.81 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Side Entry terminal
  • Joins a range of cable at right angles to terminal blocks
  • One-wrench installation
