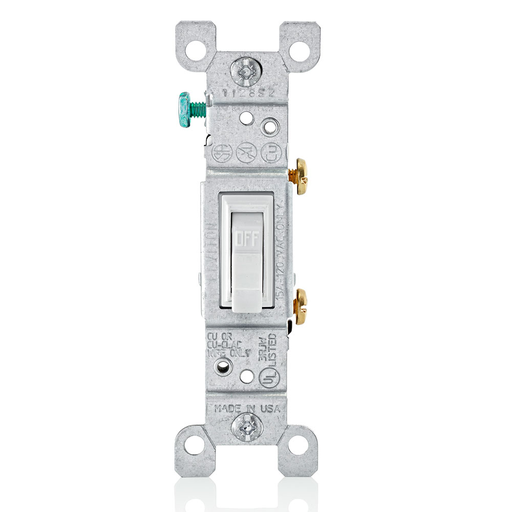

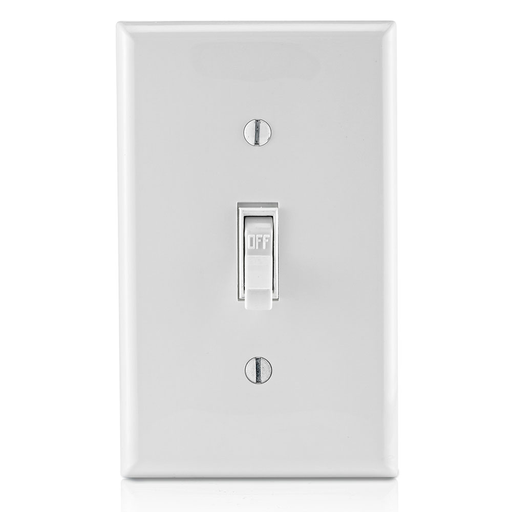

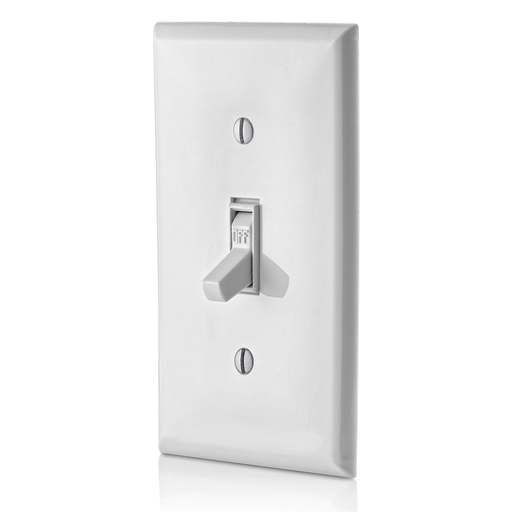

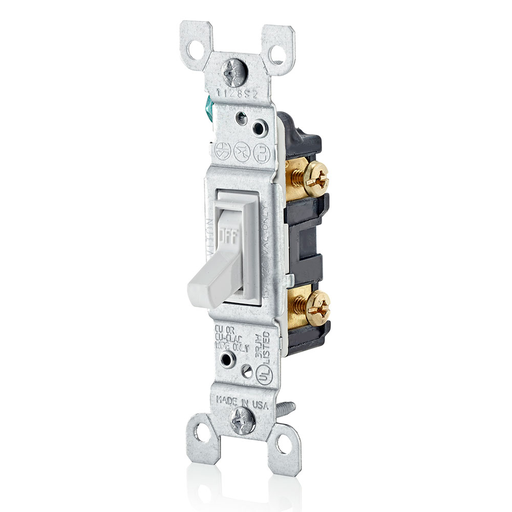

Leviton 1451-2W Single Pole Toggle Switch

Manufacturer: Leviton | Catalog # 1451-2W | Codale Part # 355206
$2.12/ea
ea
Log in or register to view your price, purchase history, and more!
199 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 120 Volt, Toggle Framed Single-Pole AC Quiet Switch, Residential Grade, Grounding, White

Technical Information

Action
Off
Actuator
Cam, Toggle
Amperage
12 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Push-In And Side Wired
Contact Rating
120 V
Grade
Commercial
Grounding
Grounding
Horsepower
1/2 hp
Insulation Material
Thermoplastic
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
Number of Poles
1 Pole
Operating Temperature
-40 To 65 degrees C
Size
4.20 H x 1.31 W x 11 D IN
Standard
CSA,UL
Tc Connection
Push-In and Side Wired
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
AC Quiet
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL SWITCHES

General Product Info

12-Digit UPC
078477778203
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Product UPC
07847777820
Weight
0.0800 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • Faster installation with combination of side wiring and Quickwire push-in wiring
  • Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Large head triple-drive combination screws (Standard, Phillips, Robertson) for fast wiring installation
  • Impact-resistant, durable thermoplastic toggle and frame
  • Backed by a Limited Two-Year Warranty
  • NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
  • Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Levitons traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.
Color Variations
  • Brown
