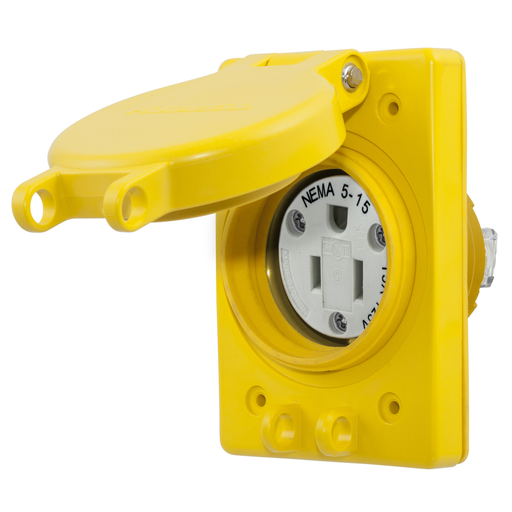

Hubbell HBL60W47 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15 Yellow Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL60W47 | Codale Part # 3552326
$89.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Series, Straight BladeReceptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA 5-15R, Yellow

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Body Material
PBT
Conductor Size
15-14 AWG
Contact Material
Nickel Plated Brass
Current
15 Amp
Dielectric Strength
2500 VAC
Grade
Industrial
Material
PBT
Mounting Type
Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized Product
Tc Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Single
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
15-14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585456577
Color
Yellow
Product Series
Watertight Devices
Product UPC
78358545657
Weight
0.5400 lb

Dimensions

Height
3.418 Inch
Length
5.168 Inch
Width
3.4 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
