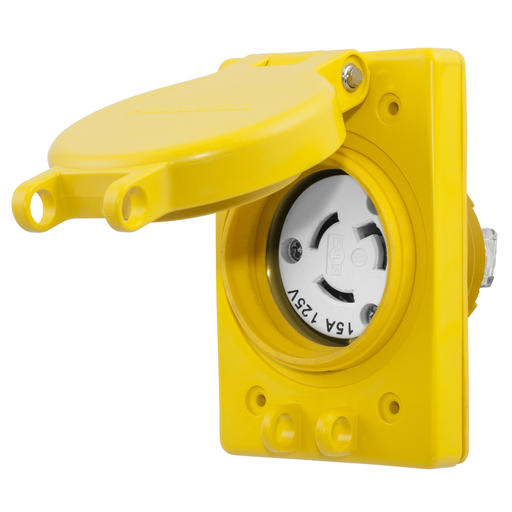

Hubbell HBL65W47 WATERTIGHT RECEP ASSY, NEMA L5-15R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL65W47 | Codale Part # 3552327
$81.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

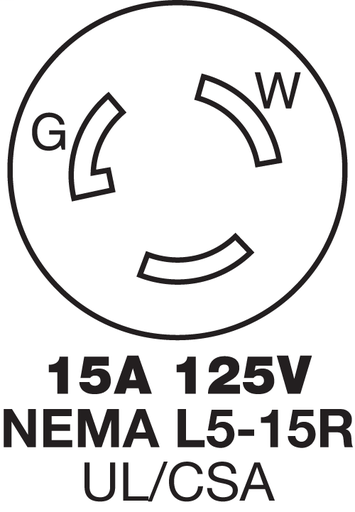

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 15A, 125VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-15R, Yellow.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Body Material
PBT
Conductor Size
18-10 AWG
Contact Material
Nickel Plated Brass
Current
15 Amp
Dielectric Strength
2500 VAC
Grade
Industrial
Material
PBT
Mounting Type
Flush
NEMA
L5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Non-Shrouded, Corrosion-Resistant, Watertight
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585456614
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358545661
Weight
0.3000 lb

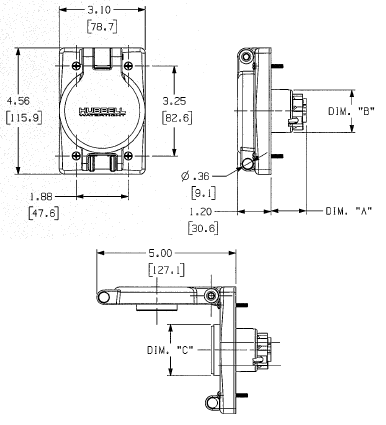

Dimensions

Height
2.66 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
