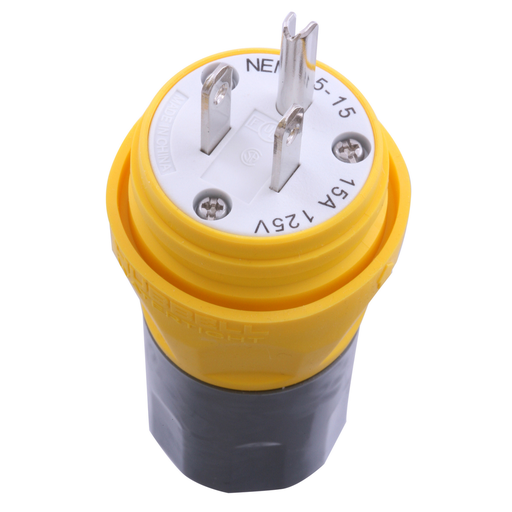

Image thumbnail 2

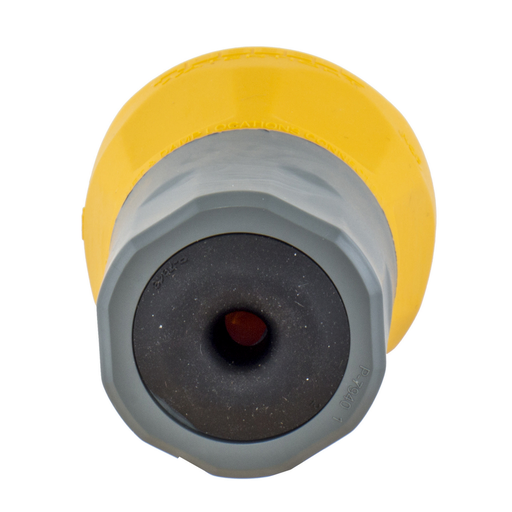

Image thumbnail 3

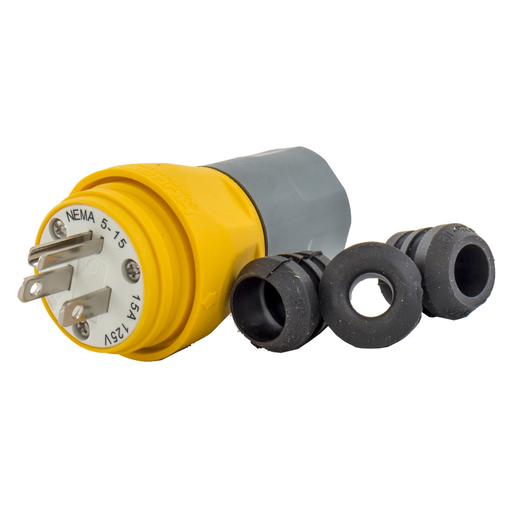

Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Image thumbnail 12
Image thumbnail 13
Email

Hubbell HBL14W47A 15 Amp 125 Volt 2-Pole 3-Wire Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL14W47A | Codale Part # 3553430
$39.12/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Thermoplastic Elastomer Water Tight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Yellow, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Cord Size
3/8 - 5/8 in
Cord Type
All Portable
Current
15 Amp
Dielectric Strength
2500 VAC
Material
Thermoplastic
Mounting Type
Surface
NEMA
5-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized
Standard
12,4X,6,6P,ANSI Standards,CSA,CSA C22.2 No. 42,IP69K Rating,Meets NEMA WD-1,Type 4,UL,UL498,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Standard, Watertight
Voltage
125 Volt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Watertight®

General Product Info

12-Digit UPC
783585131191
Color
Yellow
Environmental Conditions
Watertight
Product Series
Watertight Devices
Product UPC
78358513119
Weight
0.2 lb

Dimensions

Height
10-5/8 Inch
Length
9 Inch
Width
3.260 in

Certifications and Compliance

Country of Origin
USA
Features
  • Smooth body design minimizes collection points simplifying thewash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
