HWDK HBL18201ICN SP TOG, IND GRD, 1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL18201ICN | Codale Part # 3553432
$42.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 347V AC, Terminal Screws, Ivory

Technical Information

Action
Positive Snap, Off
Actuator
Toggle
Amperage
15 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Grade
Industrial
Material
Thermoset
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Style
Single Pole
Switch Type
Single Pole
Tc Connection
Back and Side Wired
Type
2 Position, General Purpose, Extra Heavy Duty, Standard
Voltage
347 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585924700
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Extra Heavy Duty
Product UPC
78358592470
Weight
0.2 lb

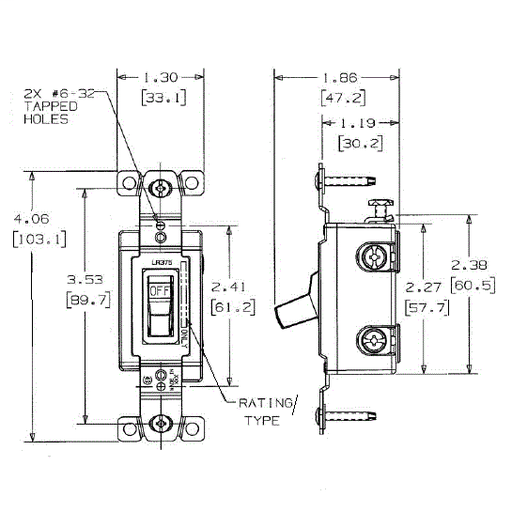

Dimensions

Height
1.86 Inch
Length
4.06 Inch
Width
1.3 in

Certifications and Compliance

Country of Origin
China
Features
  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
