Hubbell HBL24W49 Plug, w/TIGHT, L6-15P, 15A, 250V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL24W49 | Codale Part # 3553667
$44.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Devices, Twist-Lock® Plug, 15A, 250V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L6-15P, Yellow

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
16-10 AWG/18-12 AWG
Contact Material
Nickel Plated Brass
Cord Size
3/8 - 5/8 in
Cord Type
SJ, S
Current
15 Amp
Dielectric Strength
2500 VAC
Material
Thermoplastic
NEMA

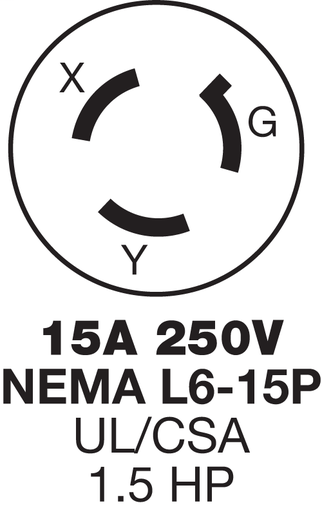

L6-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

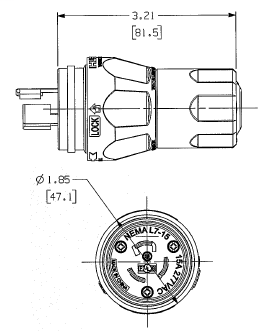

1.85 in x 1.85 in x 3.21 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Industrial Grade
Voltage
250 Volt
Wire Count
3
Wire Size
16/3 SJ-10/3 SJ, 18/3 S-12/3 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131252
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358513125
Weight
0.2000 lb

Dimensions

Height
3.21 Inch
Length
1.85 Inch
Width
1.85 in

Certifications and Compliance

Country of Origin
USA
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
