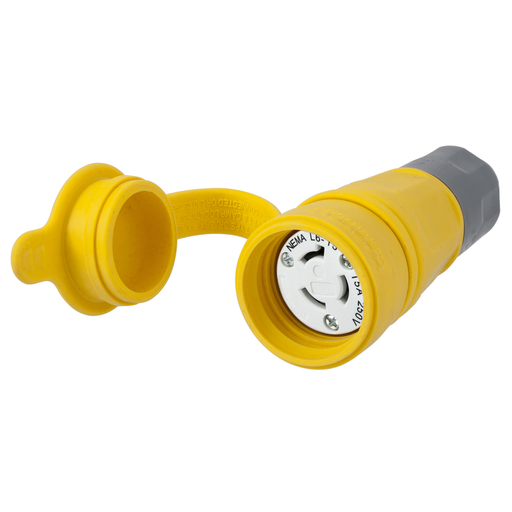

HWDK HBL25W49 CONN, W/TIGHT, L6-15R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL25W49 | Codale Part # 3553668
$76.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

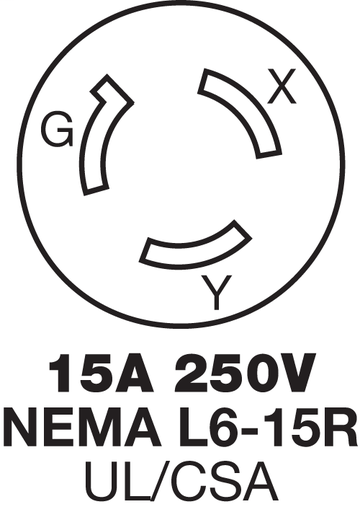

Watertight Devices, Twist-Lock® Connector, 15A, 250V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L6-15R, Yellow

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
16-10 AWG/18-12 AWG
Contact Material
Nickel Plated Brass
Current
15 Amp
Material
Thermoplastic
NEMA
L6-15R
Number of Conductors
3-Wire Grounding
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

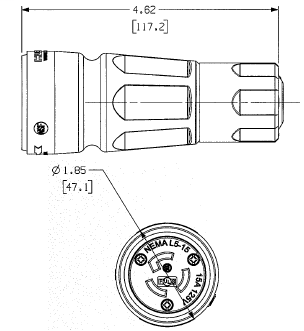

1.85 in x 1.85 in x 4.62 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 degrees C to 60 degrees C
Type
3-Wire, Watertight
Voltage
250 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131337
Color
Yellow
Environmental Conditions
Water Tight
Product UPC
78358513133
Weight
0.2000 lb

Dimensions

Diameter
1.85 Inch
Height
4.62 Inch
Length
1.85 Inch
Width
1.85 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
