PAN UTPCH7VLY Cu,PC,Cat5e,UTP,Cbl,V

Manufacturer: PANDUIT | Catalog # UTPCH7VLY | Codale Part # 3554541
$32.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

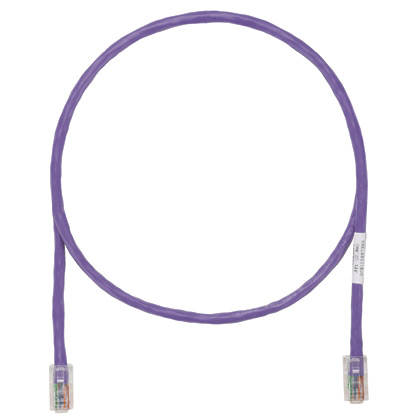

The TX5e™ Cat 5e UTP Patch Cord is a 7-Foot, Violet cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug™ modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM(3) Token ring 4/16(4) Voice/data systems(5) Voice over Internet Protocol (VoIP)
Boot Color
Clear
Cable Type
24 AWG U/UTP
Conductor Material
Copper
Conductor Size
24 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 5e
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
140 degrees F
Type
Category 5e
Wire Size
24 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983166121
Color
Violet
Product UPC
07498316612
UNSPSC
43223303,43223303
Weight
0.2500 lb

Dimensions

Cable Length
7 ft
Length
7 Inch
Outer Diameter
0.22 in
Outside Diameter
5.5 mm
Overall Length
7 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, UL 1863, CSA standard C22.2, RoHS Compliant
