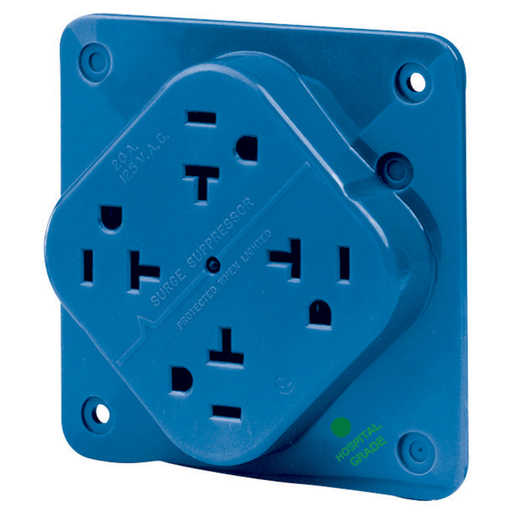

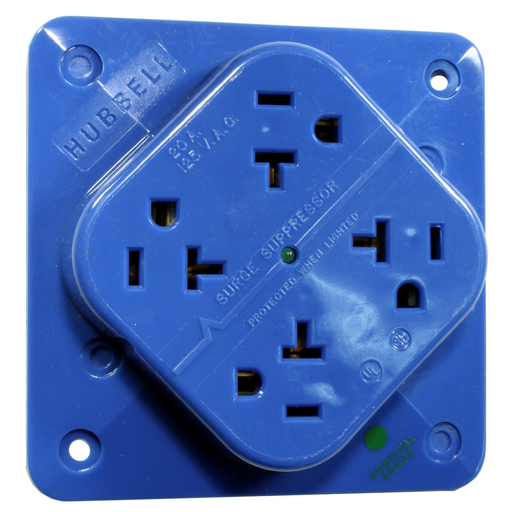

Hubbell HBL420HS 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Blue Surge Suppression Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL420HS | Codale Part # 3556016
$185.53/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
4-PLEX, Hospital Grade Surge Suppression Receptacle, 20A 125V, 5-20R, with Surge, Blue

Technical Information

Amperage
20 Amp
Applications
4-Plex with LED
Current
20 Amp
Frequency
60 Hz
Grounding
Isolated
Material
Composite
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Operating Temperature
0 To 60 degrees C
Response Time
5n s
Size
Standard
Standard
CSA 22.2,No. 42 File 285,UL Standard 498 File E2186
Tc Connection
Terminal Screws
Temperature Rating
0 - 60 degrees C
Type
Straight Blade
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SpikeShield®

General Product Info

12-Digit UPC
783585017891
Class
Normal and Common Mode
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Hospital Grade
Product UPC
78358501789
Weight
0.4 lb

Dimensions

Height
1.48 Inch
Length
4.42 Inch
Width
4.420 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Mounts directly to 4-inch square box
  • Heavy duty, impact resistant housing
  • Removable knockouts for mounting
  • Heavy duty, triple wipe, brass power and ground contacts
  • Isolated Ground
