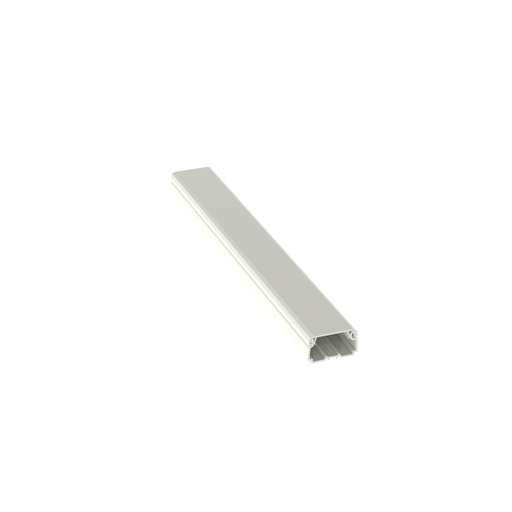

Panduit LDPH10WH6-A Surface Raceway, LDPH10 Power Rated, 2-pc Latch, 6 ft, White

Manufacturer: PANDUIT | Catalog # LDPH10WH6-A | Codale Part # 3556777
$7.46/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The LDPH10 power rated surface raceway is a two-piece latching raceway with cover suitable for applications up to 600 V. It features pre-punched mounting holes and factory-applied adhesive backing for fast mounting. It is 6 feet in length and is 1.52 inches wide by 0.86 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is white.

Technical Information

Applications
Designed for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes or anywhere a small, secure, low profile raceway is needed.
Material
PVC
Mounting Type
Adhesive
Type
Power Rated Channel

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Way®

General Product Info

12-Digit UPC
074983344307
Color
White
Product UPC
07498334430
UNSPSC
39131710
Weight
1.3152 lb

Dimensions

Height
0.86 Inch
Length
6 Foot
Overall Length
6 ft
Width
1.52 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
