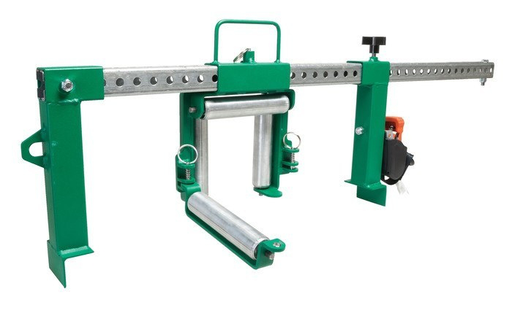

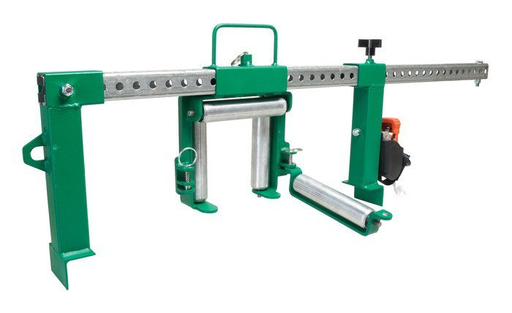

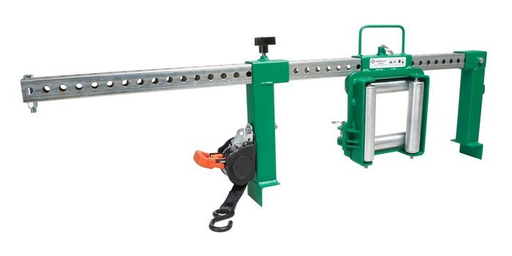

Greenlee CTR200 ROLLER,CABLE-HEAVY DUTY

Manufacturer: Greenlee | Catalog # CTR200 | Codale Part # 3558077
$2,049.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

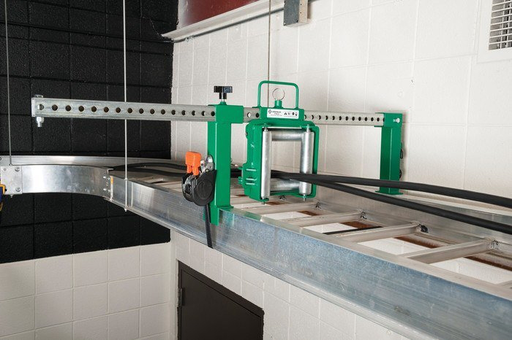

Heavy duty cable tray roller. Perforated tube allows adjustable leg to fit on tray widths of up to 36 inch. Auto-retractable ratchet strap quickly fastens mounting system to tray. Rotating frame opens from left to right side to release cable. No loose pieces. Adjustable legs to fit onto tray width sizes of 12 to 36 inch. Mounting bracket securely fastens to various types of cable tray rails. 4 conveyer roller guide with 2 retained spring pull-pin release to easily remove cable from both sides. Closed conveyer roller guide that traps cable within guide without damaging cable jacket. 6 ft long durable retractable ratchet strap for sturdy assembly onto tray. Easily handle forces of up to 200 lbs. Designed and assembled in USA. Application: use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90. bends and offsets without taking space up inside the tray.

Technical Information

Applications
Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90° bends and offsets without taking space up inside the tray.
Cable Size
4 in
Capacity
200 lb (90 kg)
Material
Steel

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310027973
Product UPC
78331002797
Weight
19.9 lb

Dimensions

Length
42-3/4 Inch
Overall Length
1085.9 mm
Width
4-1/4 in

Certifications and Compliance

Country of Origin
USA
Features
  • Cable pulling tool has no loose pieces
  • 6' (1.8 m) long durable retractable ratchet strap for sturdy assembly onto tray
  • Closed conveyer roller guide that traps cable within guide without damaging cable jacket
  • Mounting system above tray
  • Easily handle forces of up to 200 lbs.. (45.4 kg)
  • 4 conveyer roller guide with 2 retained spring pull-pin release to easily remove cable from both sides
  • Designed and Assembled in USA
Application
  • Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90° bends and offsets without taking space up inside the tray.
