Panduit FR12TB12 FiberRunner® Trapeze B

Manufacturer: PANDUIT | Catalog # FR12TB12 | Codale Part # 3558807
$161.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

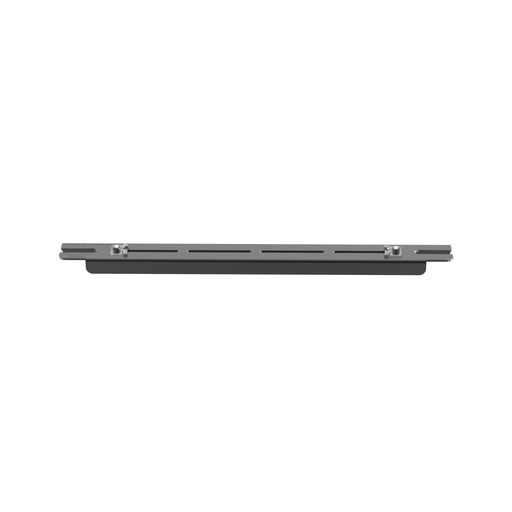

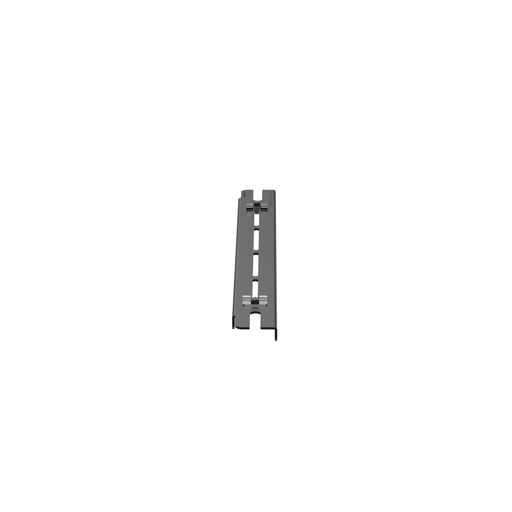

The FiberRunner® QuikLock™ Trapeze Bracket is used to support the 12x4 system by spanning two threaded rod drops that are 18 inches apart. It can be installed from above or below. It is used for a 0.5 inch threaded rod. The QuikLock™ Trapeze Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to the channel.

Technical Information

Material
Steel
Type
Trapeze

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
FiberRunner

General Product Info

12-Digit UPC
074983847464
Color
Black
Product UPC
07498384746
Used With
12 x 4 Cable Routing System, 1/2 in Threaded Rod
Weight
3.3000 lb

Dimensions

Height
0.86 Inch
Overall Length
546.6 mm
Width
57.4 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR
Prop 65
  • No
