Product image for Hubbell CSB215W 15 Amp 120/277 VAC 2-Pole White Toggle Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell CSB215W 15 Amp 120/277 VAC 2-Pole White Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CSB215W | Codale Part # 3559541
$16.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, White

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
15 Amp
Applications
Commercial Spec Grade
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Grade
Commercial
Material
Thermoplastic
Number of Poles
2 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Double Pole
Tc Connection
Back and Side Wired
Type
General Purpose, 2 Position, Standard
Voltage
120-277 Volt
Wattage
4.155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585153858
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
General Purpose
Product UPC
78358515385
Weight
0.15 lb

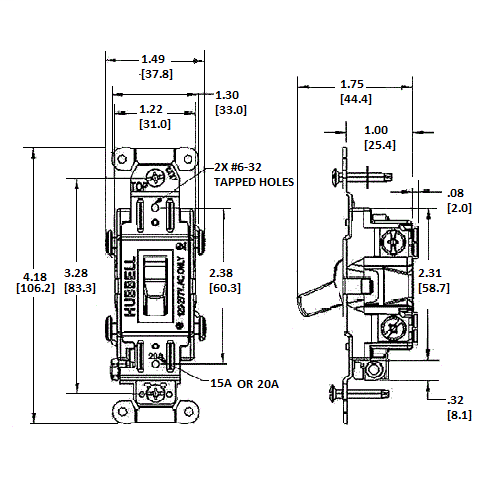

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
Features
  • Commercial Grade Durability:Built to withstand the demands of commercial environments
  • Double Pole Functionality:Allows control of two circuits simultaneously
  • 15A, 120/277V AC Compatibility:Suitable for a wide range of electrical applications
  • Back and Side Wiring Options:Provides flexibility in installation methods
  • Sleek White Finish:Enhances visibility and complements various decor styles
  • Robust Construction:Ensures long-lasting performance and reliability
  • Easy Installation:Designed for quick and straightforward setup
  • Versatile Use:Ideal for controlling lighting and other electrical fixtures in commercial settings
  • The Double Toggle Switch offers robust commercial-grade construction and dual-pole functionality, ensuring reliable control and versatility for various electrical applications in commercial settings.
