Hubbell HBL60W33 20 Amp 125 Volt 2-Pole 3-Wire Yellow Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL60W33 | Codale Part # 3560894
$93.89/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Series, Straight BladeReceptacle, 20A 125V, 2-Pole 3-Wire Grounding, NEMA 5-20R, Yellow

Technical Information

Amperage
20 Amp
Applications
Industrial and Commercial
Body Material
PBT
Conductor Size
14-12 AWG
Contact Material
Nickel Plated Brass
Current
20 Amp
Material
Elastomer
Mounting Type
Screw
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard
Tc Connection
Screw Terminals
Type
Receptacle
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
14-10

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585456560
Color
Yellow
Environmental Conditions
Watertight
Product Series
Watertight Devices
Product UPC
78358545656
Weight
0.3000 lb

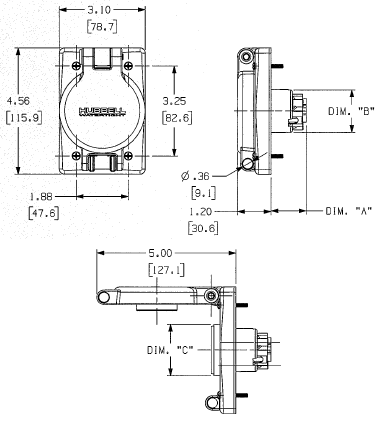

Dimensions

Height
3.418 Inch
Length
5.168 Inch
Width
3.4 in

Certifications and Compliance

Country of Origin
China
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
