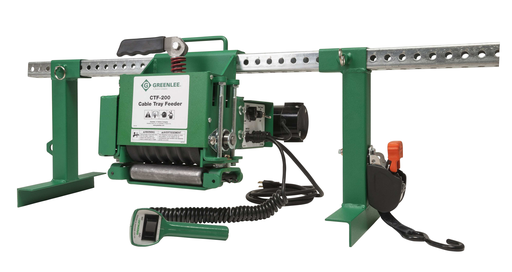

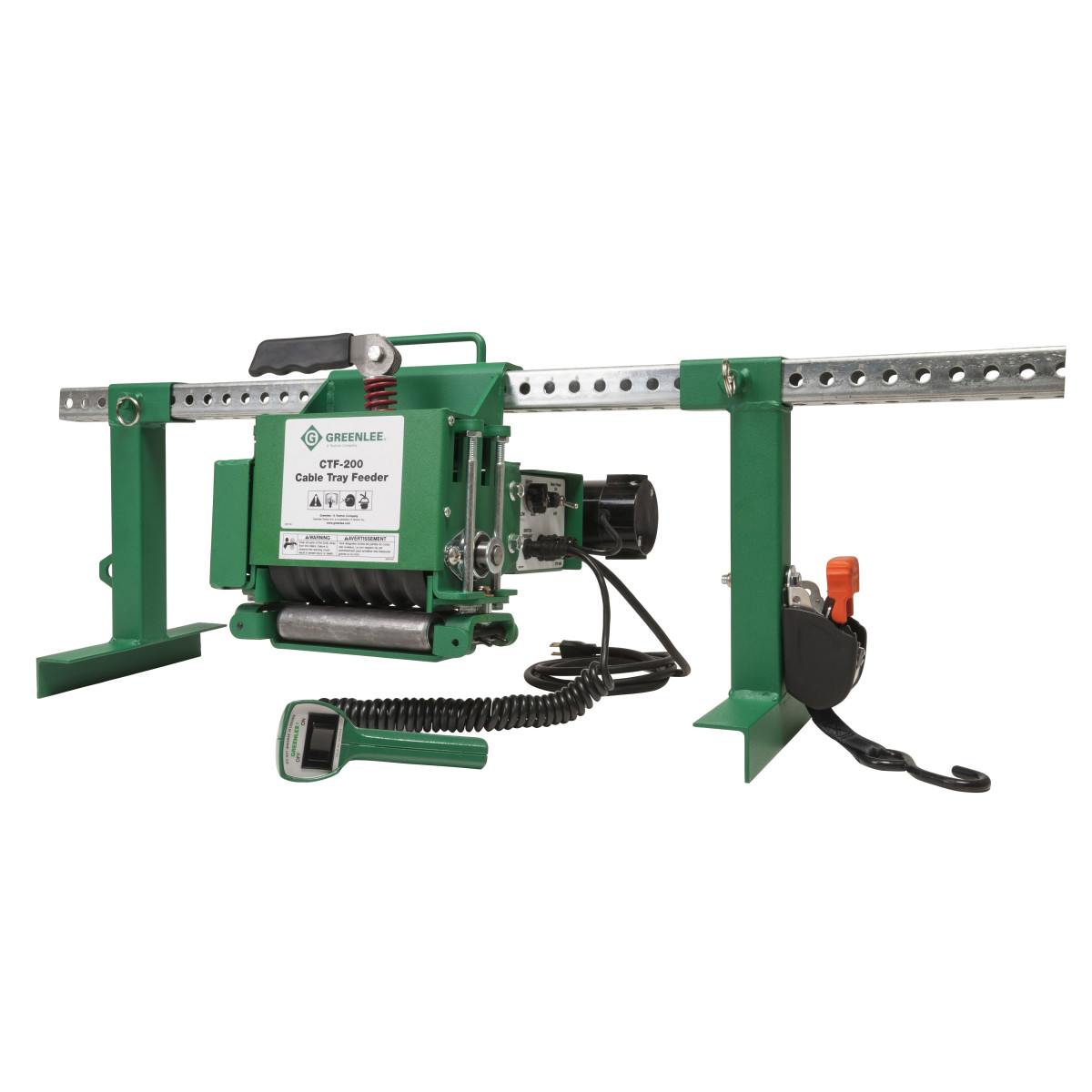

GRN CTF-200 CABLE TRAY FEEDER

Manufacturer: Greenlee | Catalog # CTF-200 | Codale Part # 3560928
$11,329.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Feeds cable aiding up to 200 lbs (90.7 kg) of force. Force limiter preset to automatically stall on cable to prevent damage to the wire's insulation. Retained locking pins allow for quick adjustment of legs and feeder along mounting system while utilizing no loose pieces. Adjustable legs to fit onto tray width sizes of 18" (457.2 mm) to 36" (914.4 mm). Over-Tray mounting systems allows cable to be placed in tray without taking space up. Safely control the unit up to 8' (2.4 m) away with a pendant. Specifically designed drive roller to safely and evenly grab cable. Quick release system utilizes 360. swivel and no loose pieces to easily remove cable. Cam lever system offers a quick clamping mechanism once pulling grip passes through. Designed and assembled in USA.

Technical Information

Applications
Used to assist feeding cables along non basket-style cable trays. Designed to aid loads right before 90 degree bends, vertical rises and drops, and on straight runs.
Type
Cable Feeder

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310036449
Product UPC
78331003644
Weight
57 lb

Dimensions

Height
14-1/4 Inch
Length
1085.9 mm
Overall Length
1085.9 mm
Width
108 mm

Certifications and Compliance

Country of Origin
USA
Features
  • Feeds cable aiding up to 200 lbs (90.7 kg) of force
  • Force limiter preset to automatically stall on cable to prevent damage to the wire's insulation
  • Retained locking pins allow for quick adjustment of legs and feeder along mounting system while utilizing no loose pieces
  • Adjustable legs to fit onto tray width sizes of 18\"\" (457.2 mm) to 36\"\" (914.4 mm)

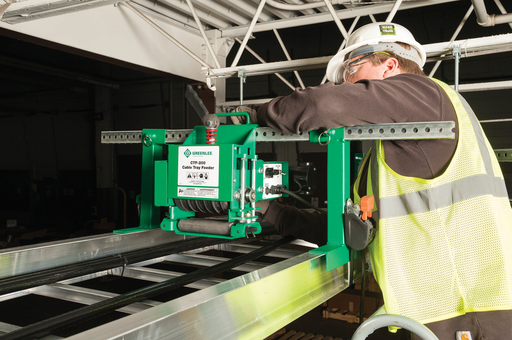

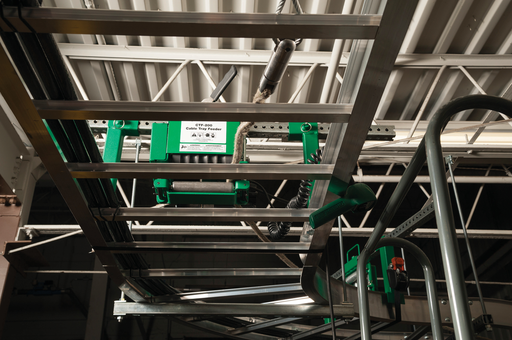

  • Over-Tray mounting systems allows cable to be placed in tray without taking space up

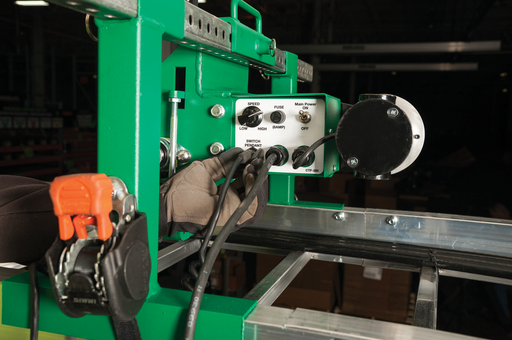

  • Safely control the CTF-200 up to 8' (2.4 m) away with a pendant
  • Specifically designed drive roller to safely and evenly grab cable
Application
  • Used to assist feeding cables along non basket-style cable trays. Designed to aid loads right before 90° bends, vertical rises and drops, and on straight runs.
