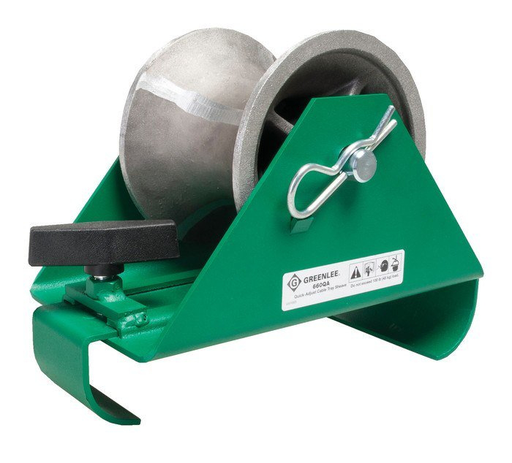

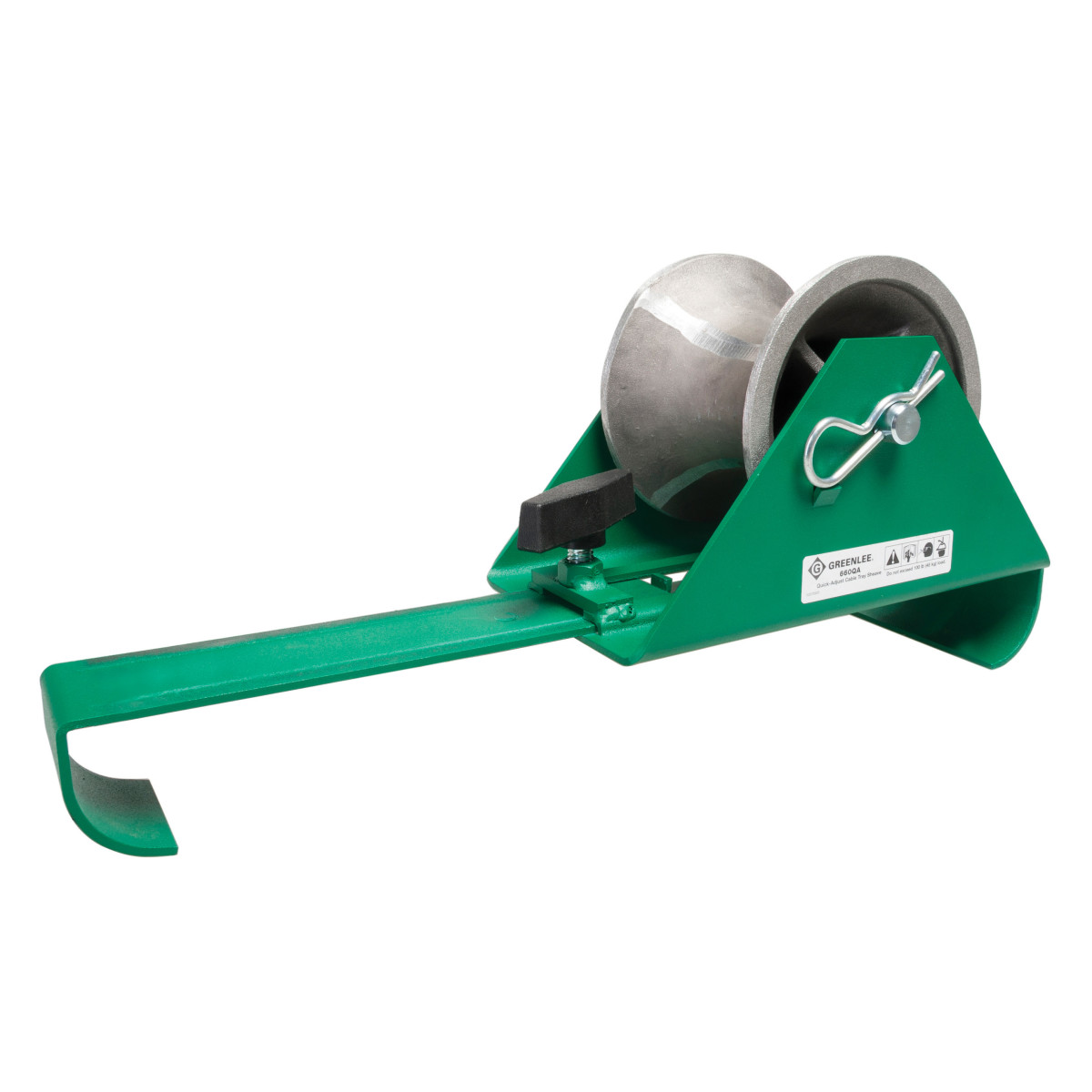

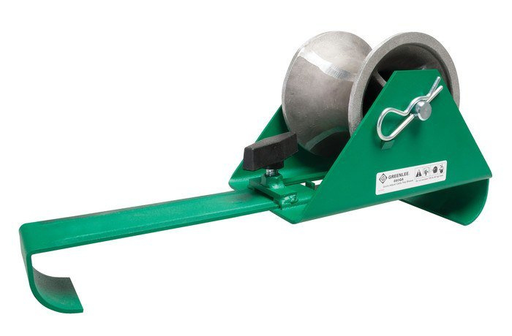

Greenlee 660QA Sheave-Tray, Quick Adjust (PKGD)

Manufacturer: Greenlee | Catalog # 660QA | Codale Part # 3560929
$654.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Quick adjust sheave tray. Attaches to all varied size tray rung spacing. 7x faster setup and disconnect. No loose pieces. Adjustable slide leg that can be extended to fit on tray rung spaces up to 20 inch. Set screw handle to easily lock and unlock adjustable sliding leg. Edge hook feet to grab tray more securely. Steel frame easily attaches to cable tray up to 2 inch thick. Cast aluminium sheave with robust shaft and bronze bushings. Easily handle forces of up to 100 lbs. Designed and assembled in USA. Application: use to assist pulling cables along non basket-style cable trays. Designed to aid loads during straight runs on the tray.

Technical Information

Applications

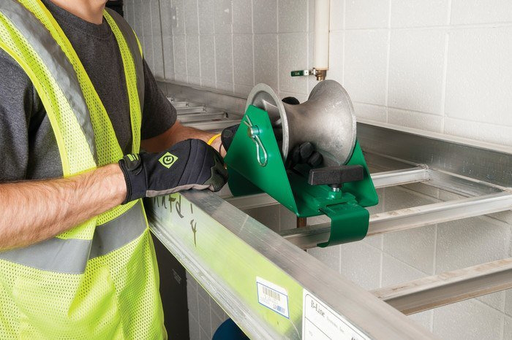

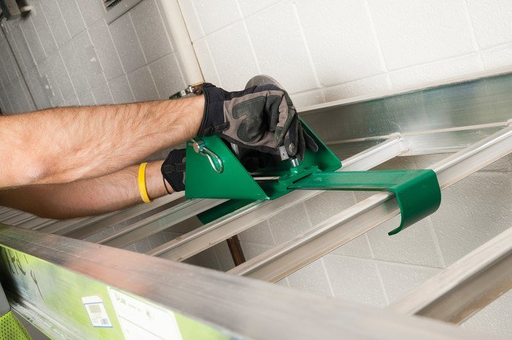

Use to assist pulling cables along non basket-style cable trays. Designed to aid loads during straight runs on the tray.
Cable Size
4.5 in
Capacity
100 lb (45 kg)

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310027683
Product UPC
78331002768
Weight
11.5 lb

Dimensions

Height
9 Inch
Length
11-1/2 Inch
Overall Length
11 1/2 in
Width
7 in

Certifications and Compliance

Country of Origin
USA
Application
  • Use to assist pulling cables along non basket-style cable trays. Designed to aid loads during straight runs on the tray.
Features
  • _7x faster setup and disconnect
  • _Attaches to all varied size tray rung spacing
  • _Pulling accessory has no loose pieces
  • _Adjustable Slide leg that can be extended to fit on tray rung spaces up to 20\" (508 mm)
  • _Set Screw Handle to easily lock and unlock adjustable sliding leg
  • _Edge hook feet to grab tray more securely
  • _Steel frame easily attaches to cable tray up to 2\" 950.8 mm) thick
