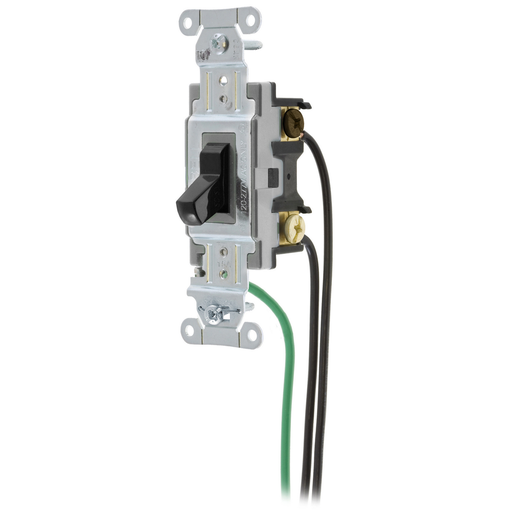

HWDK CSL415BK SWITCH, SPEC, 4W, 15A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CSL415BK | Codale Part # 3561083
$39.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Four Way, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Black

Technical Information

Actuator
Toggle
Amperage
15 Amp
Applications
2) Pre-Wired 15A Outlets, 1) Low Voltage 1-Unit iStation Plate
Base Material
Thermoset
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Flamability Class
UL 94V-2
Grade
Commercial
Material
Nylon
Max Current
15 A
Max Voltage
277 V
Number of Poles
2 Pole
Operating Cycles
50k
Operating Temperature
Max Continuous- 75 degrees C, Minimum- -40 degrees C Without Impact
Screw Material
Brass
Size
Standard Sized
Standard
UL
Style
Four Way
Tc Connection
Wire Leads
Toggle Material
Nylon
Type
3-Way, General Purpose, Standard
Voltage
120-277 Volt
Wattage
4155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585187709
Color
Black
Product Series
General Purpose
Product UPC
78358518770
Weight
0.1800 lb

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.34 in

Certifications and Compliance

Country of Origin
China
Features
  • Labor Saving
  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
