HWDK HBL2410SR2 LKG S/SHRD RCPT, L1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2410SR2 | Codale Part # 3561821
$82.43/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

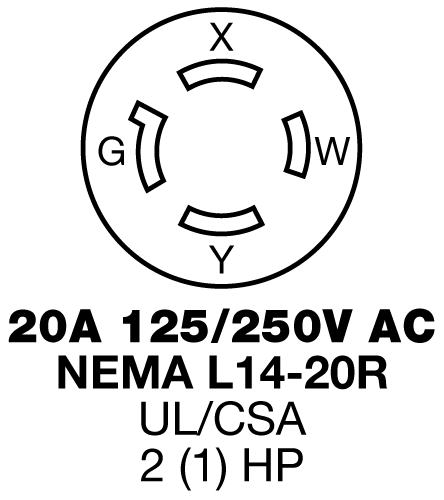

Locking Devices, Twist-Lock®, Safety-Shroud®, 2-Gang Surface Mount Receptacle, 20A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-20R, Screw Terminal, Gray.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Gang Type
2
Grade
Industrial
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
L14-20R
Number of Gangs
1 Gang
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
2-Gang, Shrouded, Heavy Duty
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585234441
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523444
Weight
0.60 lb

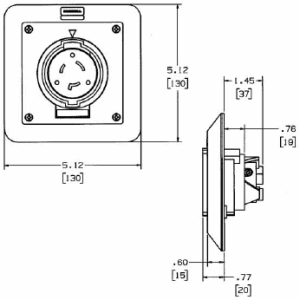

Dimensions

Height
2.22 Inch
Length
5.12 Inch
Width
5.12 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • 2-Gang Surface Mount
