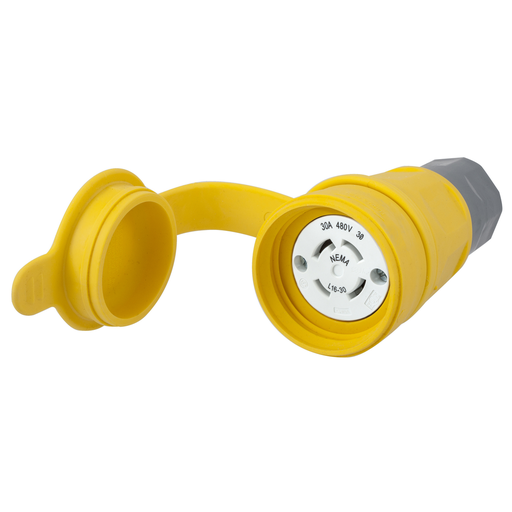

Hubbell HBL29W76 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30R Yellow Locking Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL29W76 | Codale Part # 3562143
$223.82/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Connector, 30A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
For Industrial/Commercial use
Body Material
Thermoplastic Elastomer
Conductor Size
14-10 AWG
Connection Type
Screw Terminal
Contact Material
Nickel Plated Brass
Current
30 Amp
Material
Elastomer
NEMA

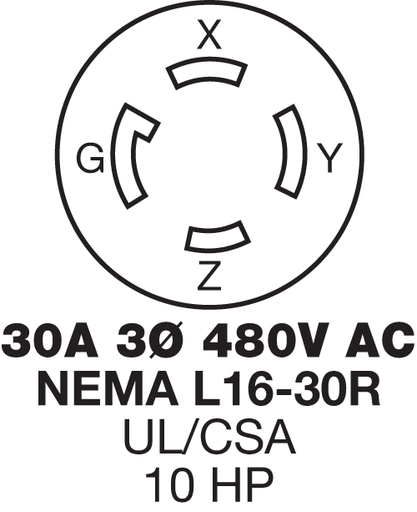

L16-30R
Number of Conductors
4
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

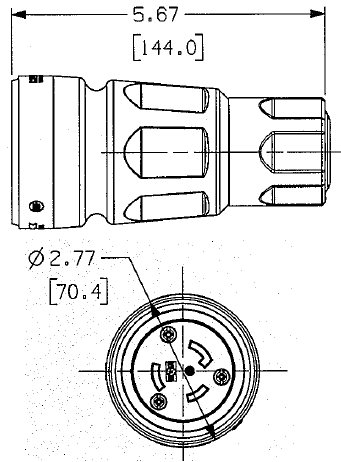

2.77 in x 2.77 in x 5.67 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C/-25 to 75 degrees C
Type
Standard, Grounding, Watertight
Voltage
480 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131894
Color
Yellow
Environmental Conditions
Water Tight
Product UPC
78358513189
Weight
0.2500 lb

Dimensions

Height
5.67 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
