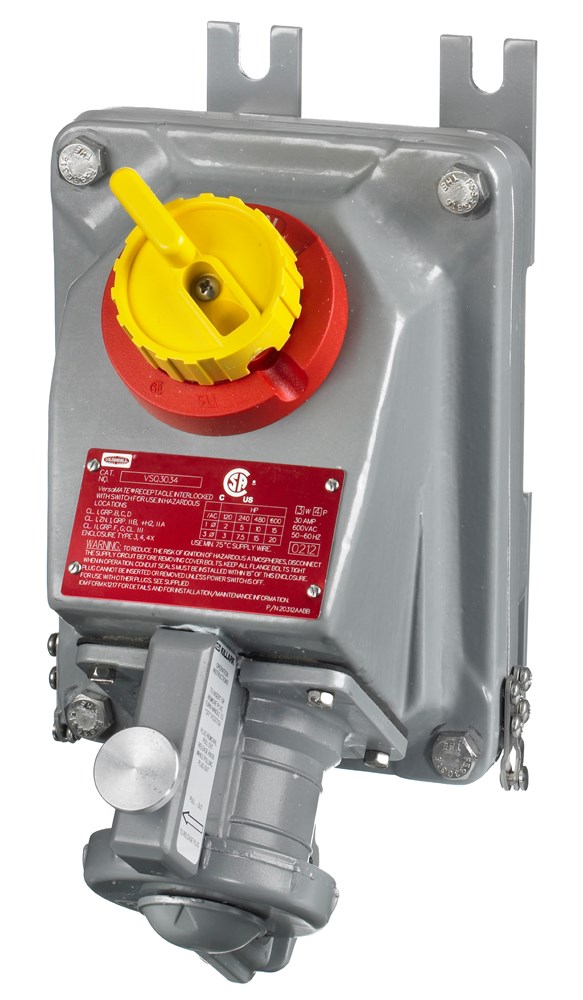

Product image for Hubbell HBLVSQ303430A 3W4P HZD INTERLOCK RECEPT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Hubbell HBLVSQ303430A 3W4P HZD INTERLOCK RECEPT

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLVSQ3034 | Codale Part # 3563348
$3,579.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Interlocked Hazardous Location Receptacle, 60A 600V AC, 4-Pole 3-Wire Grounding

Technical Information

Amperage
30 Amp
Applications
Hazardous Locations, Industrial
Conductor Size
10 AWG
Current
30 Amp
Material
Thermoplastic
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
Standard Sized Product
Tc Connection
Screw Terminals
Type
Single Receptacle
Voltage
600 VAC
Wattage
18000 Watt
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hazardous Receptacle

General Product Info

12-Digit UPC
783585242668
Color
Gray
Product Series
Mechanical Interlock
Product UPC
78358524266
Weight
14.6000 lb

Dimensions

Height
10 Inch
Length
15.3 Inch
Width
14.500 in

Certifications and Compliance

Country of Origin
USA
Features
  • Enclosures: Copper-free aluminum (less than 4/10 of 1% copper content)
  • Cover Bolts: 316 Stainless Steel
  • Finish: Grey Powder Polyester painted exterior, electrostatically applied
  • Ratings: 600V AC, 230V DC 30100 Amp
  • Optional to include up to one (1) N/O Break Before Main Break auxiliary contact
  • Interlocked
