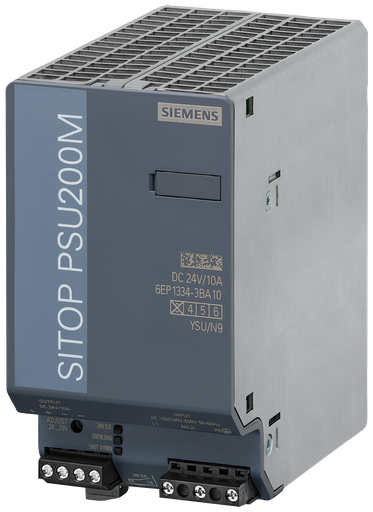

Product image for Siemens 6EP13343BA10 120/230 to 500 VAC Input 24 VDC 10 Amp Output Stabilized Power Supply
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Siemens 6EP13343BA10 120/230 to 500 VAC Input 24 VDC 10 Amp Output Stabilized Power Supply

Manufacturer: Siemens | Catalog # 6EP13343BA10 | Codale Part # 3564156
$712.25/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
SITOP PSU200M 10 A STABILIZED POWER SUPPLY INPUT: 120/230-500 V AC OUTPUT: 24 V/10 A DC

Technical Information

Amperage
10 Amp
Applications
For Demanding Solutions and Provide Maximum Functionality for use in Complex Plants and Machines
Connection Type
Screw-Type Terminals
Efficiency
0.91
Frequency
47-63 Hz
Input Current
1.1 A
IP Rating
IP20,IP20
Net Weight
1 kg
Number of Phases
1,2 Phase
Output Voltage
24 V
Standard
UL 508,CSA C22.2 No. 60950-1,File E197259,CE,CSA,UL 60950-1,CB Approval,CSA C22.2 No. 107.1,UL
Type
4-Inlet, 1-Outlet, Rectangular, Power/Communication
Voltage
24 Volt
Wattage
240 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
SITOP

General Product Info

12-Digit UPC
887621837259
Environmental Conditions
Cold Storage Temperature Range (-40 To +71 DEG C),Relative Humidity (0 PCT To 90 Pct),Storage Temperature Range (-25 To 71 DEG C)
Product UPC
88762183725
Weight
1.764 lb

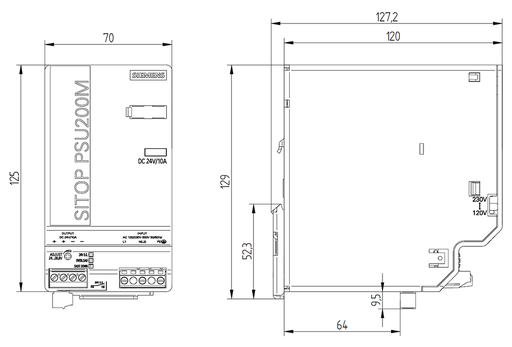

Dimensions

Depth
121 mm
Height
125 mm
Length
121 mm
Width
70.0 mm

Certifications and Compliance

Country of Origin
Romania
