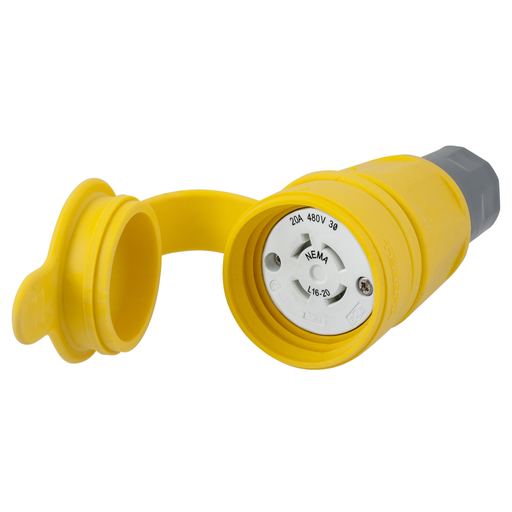

Hubbell HBL27W76 20 Amp 480 Volt 3-Pole 4-Wire NEMA L16-20R Yellow Locking Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL27W76 | Codale Part # 3564630
$126.07/ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Connector, 20A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-20R, Yellow

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Contact Material
Nickel Plated Brass
Current
20 Amp
Material
Thermoplastic
NEMA

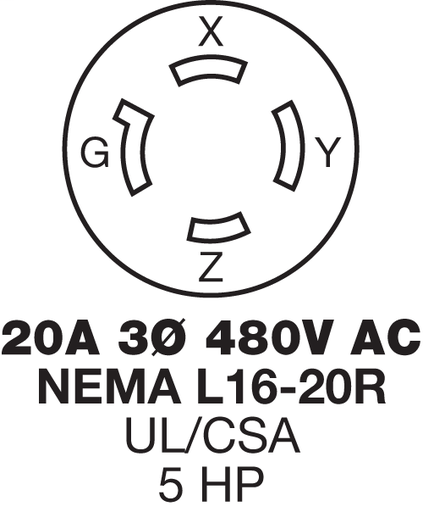

L16-20R
Number of Conductors
4-Wire Grounding
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

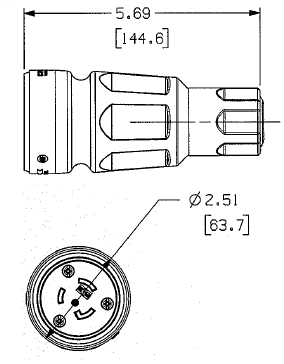

2.51 in x 2.51 in x 5.69 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 to 60 degrees C Continuous
Type
Watertight, Standard, Non-Shrouded
Voltage
480 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131818
Color
Yellow
Environmental Conditions
Water Tight
Product UPC
78358513181
Weight
0.7700 lb

Dimensions

Diameter
2-1/2 Inch
Height
5.69 Inch
Length
5.69 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
