Hubbell HBL67W76 WATERTIGHT RECEP ASSY, NEMA L16-20

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL67W76 | Codale Part # 3564631
$98.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

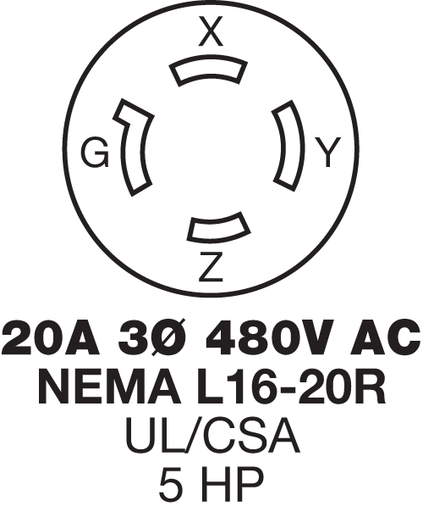

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 20A, 3 Phase 480VAC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-20R, Yellow.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Body Material
PBT
Conductor Size
18-8 AWG
Contact Material
Nickel Plated Brass
Current
20 Amp
Dielectric Strength
3500 VAC
Grade
Industrial
Material
PBT
Mounting Type
Flush
NEMA
L16-20R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

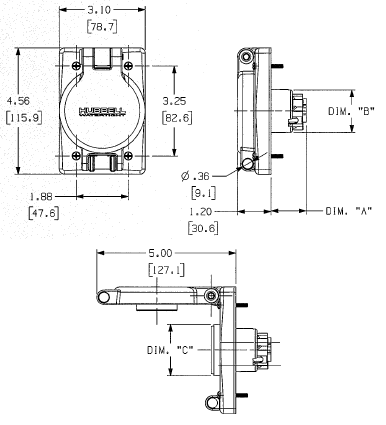

4.56 in x 3.10 in x 2.92 in
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Receptacle
Voltage
480 Volt
Wattage
9600/9600.0000 Watt;Watt
Wire Count
4
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585433196
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358543319

Dimensions

Height
2.92 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
