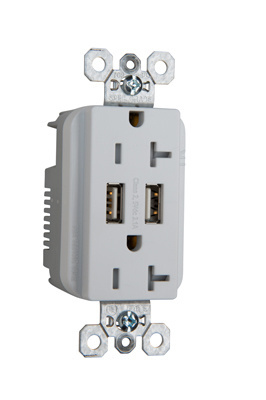

Product image for Pass & Seymour TR5362USBW 20 Amp 125 Volt White Straight Blade Receptacle with USB Charger
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour TR5362USBW 20 Amp 125 Volt White Straight Blade Receptacle with USB Charger

Manufacturer: Legrand Pass & Seymour | Catalog # TR5362USBW | Codale Part # 3566124
$66.34/ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Installation / Instruction Manual
Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
For Commercial Markets
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Material
Thermoplastic
Mounting Type
Box, Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Tamper Resistant
Size
1.392" (D) x 1.693" (W) x 3.281" (H)
Style
Decorator
Tc Connection
Side & Back Wired
Temperature Rating
-40 degrees C to 60 degrees C
Type
Non-Reversing
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007031669
Color
White
Finish
Matte
Product UPC
78500703166
Weight
0.3000 lb

Dimensions

Depth
1.392 Inch
Height
2.677 Inch
Width
1.693 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Vietnam
Features
  • Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
  • One-piece heat-treated triple-wipe brass power contacts.
  • AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
  • Multiple color options available.
  • Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
  • Stainless steel auto-ground clips assure positive ground.
  • Wire Size: #14 - #10 AWG Copper Conductor Only
Certifications
  • UL Listed
  • cULus Listed
