Hubbell HBL15W33A 20 Amp 125 Volt 2-Pole 3-Wire Yellow Straight Blade Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL15W33A | Codale Part # 3567351
$57.98/ea
ea
Log in or register to view your price, purchase history, and more!
11 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Thermoplastic Elastomer Water Tight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Yellow, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Contact Material
Nickel Plated Brass
Current
20 Amp
Material
Thermoplastic
NEMA
5-20R
Number of Conductors
3-Wire Grounding
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized Product
Standard
12,4X,6,6P,ANSI Standards,CSA,CSA C22.2 No. 42,IP69K Rating,Meets NEMA WD-1,Type 4,UL,UL498,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 degrees C to 60 degrees C
Type
3-Wire, Watertight
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585131269
Color
Yellow
Environmental Conditions
Water Tight
Product Series
Watertight Devices
Product UPC
78358513126
Weight
0.2 lb

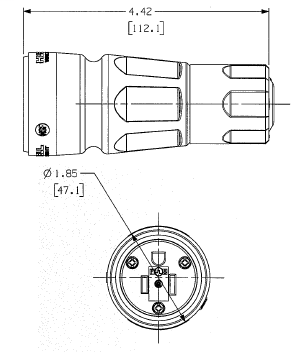

Dimensions

Diameter
1.85 Inch
Height
9.8 Inch
Length
4.42 Inch
Width
3.7 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying thewash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Water-Tight
