HWDK HBL25W34 CONN, W/TIGHT, L7-15R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL25W34 | Codale Part # 3567354
$91.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

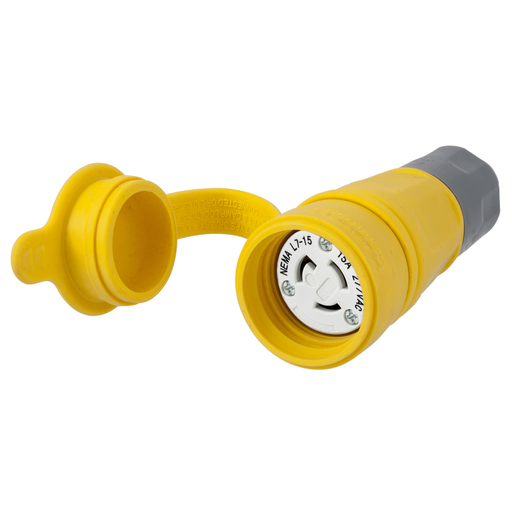

Watertight Devices, Twist-Lock® Connector, 15A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-15R, Yellow

Technical Information

Amperage
15 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Contact Material
Nickel-Plated Brass
Cord Size
0.3 - 0.625 in
Current
15 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Composite/Elastomeric
Mounting Type
Cord

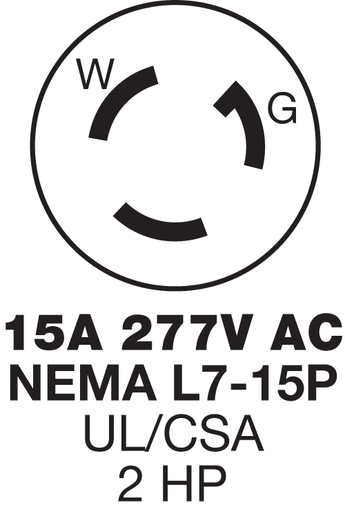

NEMA
L7-15R
Number of Conductors
3-Wire Grounding
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

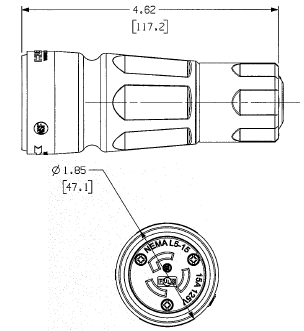

Size
1.85 in x 1.85 in x 4.62 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Connector Body
Voltage
277 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131313
Color
Yellow
Environmental Conditions
UV-Resistance, Moisture-Resistance
Product UPC
78358513131
Weight
0.2000 lb

Dimensions

Height
4.62 Inch
Length
1.85 Inch
Width
1.85 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
