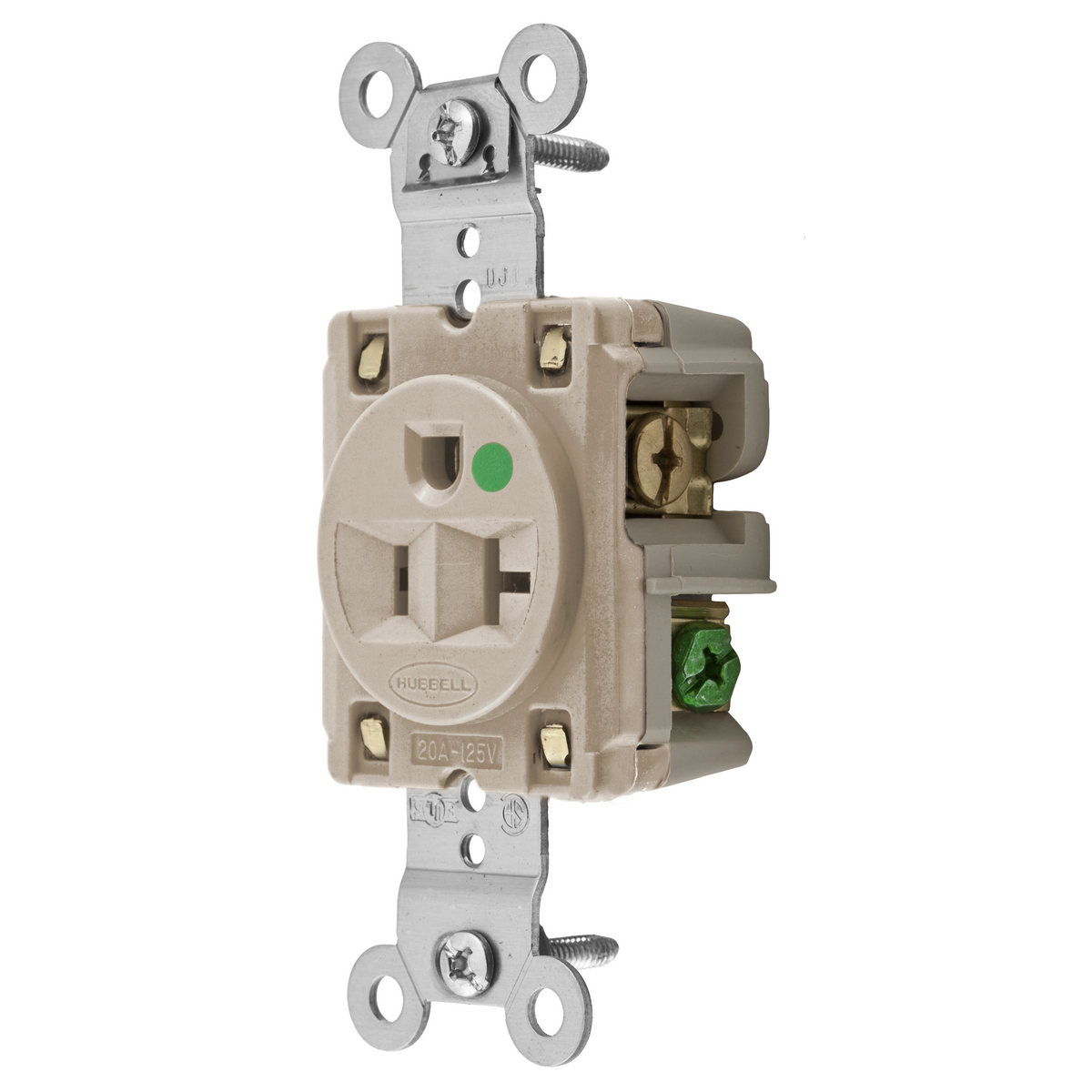

Hubbell HBL8310AL SGL Receptacle, HG, 20A 125V, 5-20R, AL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8310AL | Codale Part # 3568118
$38.64/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Almond, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Hospital Grade
Base Material
PBT
Conductor Size
14-12 AWG
Current
20 Amp
Face Material
Nylon
Grade
Hospital
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Style
Finder Groove Face
Tc Connection
Back and Side Wired Screw Terminals
Type
Receptacle
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585127637
Color
Almond
Product Series
Hospital Grade
Product UPC
78358512763
Weight
0.25 lb

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.63 in
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Features
  • One-piece nickel-plated brass integral ground strap
  • Patented bypass contact design
