HWDK HBL2615M3 CAT#2615, MOD WP COV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2615M3 | Codale Part # 3568227
$256.66/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

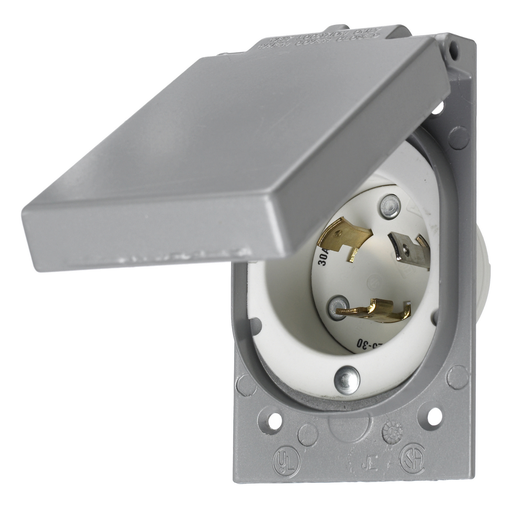

Locking Devices, Twist-Lock®, Insulgrip® Inlet, 30A, 125V AC, 2 Pole 3 Wire, NEMA L5-30P, Back Wired, Nylon casing, weather protective, die cast aluminum, back wired, self closing lift cover.

Technical Information

Amperage
30 Amp
Conductor Size
16-8 AWG
Current
30 Amp
Material
Nylon
NEMA
L5-30P
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Voltage
125 Volt
Wattage
3750 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585039954
Color
Gray
Product UPC
78358503995
Weight
0.6000 lb

Dimensions

Height
3.1 Inch
Length
4.2 Inch
Width
4.0 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Integral self closing lift cover
