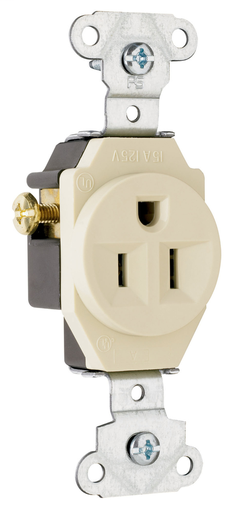

Pass & Seymour 5251-LA Heavy-Duty Spec Grade Single Receptacle, Side Wire 15A 125V - Light Almond

Manufacturer: Legrand Pass & Seymour | Catalog # 5251LA | Codale Part # 3568261
$26.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Heavy-Duty Spec Grade Single Receptacle Side, Wire 15amp 125volt, Brown

Technical Information

Amperage
15 Amp
Applications
Residential/Commercial
Capacity
Single
Conductor Size
4 AWG
Connection Type
Side Wired
Duty Rating
Heavy Duty
Grade
Residential/Commercial
Material
Thermoplastic
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.3 in
Tc Connection
Wire Ground
Type
Single Receptacles
Voltage
125 Volt
Wire Size
4 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007525120
Color
Light Almond
Product UPC
78500752512
UNSPSC
39121406

Dimensions

Depth
1.08 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
