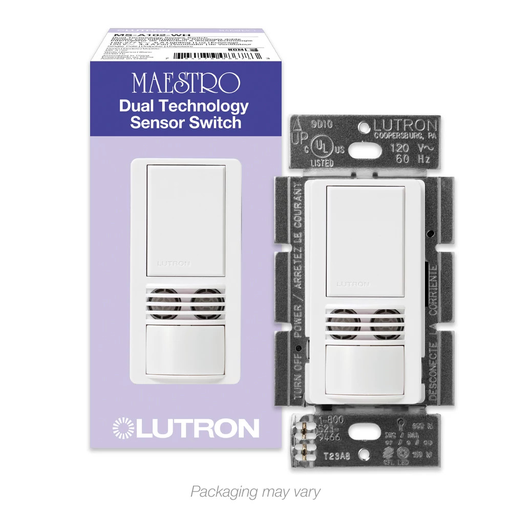

Lutron MS-A102-WH 120 to 277 VAC 6 Amp 1-Pole White Dual Technology Occupancy Sensor Switch

Manufacturer: Lutron Electronics | Catalog # MS-A102-WH | Codale Part # 3568290
$107.95/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Maestro Dual Technology (Dual Tech) occupancy sensor switch, applies exclusive XCT Technology for minor and fine motion detection in white

Technical Information

Amperage
6 Amp
Applications
For Lighting Control
Body Material
Plastic
Enclosure
Plastic
Enclosure Material
Plastic
Indicator
Smart ambient light detection (ALD)/Fixed ambient light detection
Material
Plastic
Mounting Type
Wall, Flush
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Power Supply
120 V
Response Time
1, 5, 15, 30 min
Sensing Range
900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Sensor Type
Ultrasonic
Standard
NOM,Title 20/24 Certified
Temperature Rating
0 degrees C to 40 degrees C
Type
Single-Circuit, Indoor
Voltage
120-277 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276086783
Color
White, Matte
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
Product UPC
78427608678
Weight
0.3300 lb

Certifications and Compliance

Country of Origin
China
Standards and Certifications
  • UL
  • NOM
  • TITLE20
  • TITLE24
  • Title 20/24 certified
Features
  • Includes (1) Lutron Maestro Dual-Tech Motion 6A Sensor Switch; Gloss Finish
  • Single Pole Only; Rated to work with a single circuit up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
  • Ground or Neutral required; 120-277V
  • 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens
  • Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine and very fine motion detection
  • Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room
  • Adaptive zero-cross switching algorithm for extended relay life

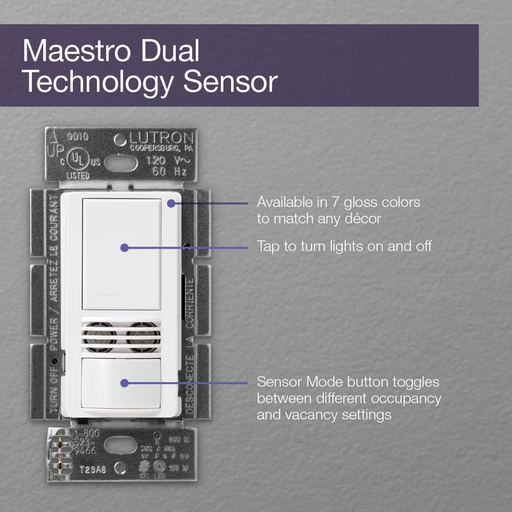

  • Easy to read programming buttons directly on sensor
  • Complies with Title 20/24, ASHRAE 90.1, and IECC code requirements such as automatic shutoff
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing
  • Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings
  • XCT technology for major, minor, fine, and very fine motion detection
  • 180 degree field-of-view
  • Tamper-resistant PIR lens
  • Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
  • Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm
  • Sensor learns user's preferred light level over time
  • Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min
  • Can be set to auto-on/auto-off or manual-on/auto-off per circuit
  • Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
  • Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off)
  • Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
  • Switches fan loads at 120 V
  • Does not require neutral wiring.
