Hubbell HBL27CM31 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30P Yellow Locking Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL27CM31 | Codale Part # 3568891
$194.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Marine Grade, Male Insulgrip® Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-30P, Screw Terminal, Corrosion resistant, Yellow

Technical Information

Amperage
30 Amp
Applications
Power Connection
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 Amp
Grade
Marine
Horsepower
10 hp
Material
Nylon
Mounting Type
Cord

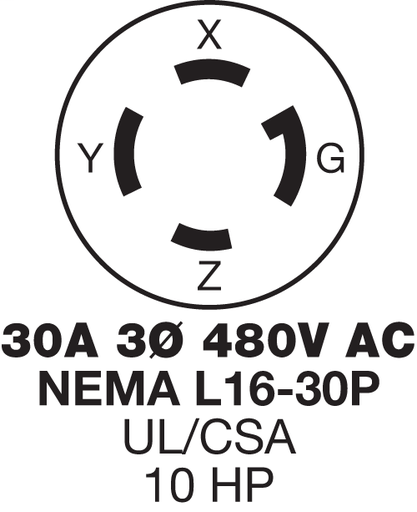

NEMA
L16-30P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C

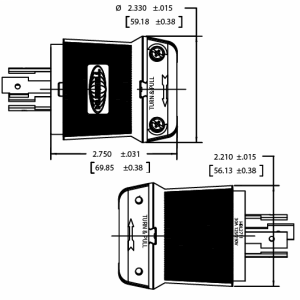

Size
2.33 in x 2.33 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Terminal Screws
Type
Standard Sized, Marine Grade
Voltage
480 Volt
Wattage
14400 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039596
Color
Yellow
Environmental Conditions
Corrosion Resistant
Product UPC
78358503959
Weight
0.35 lb

Dimensions

Height
2-3/4 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nickel plated blades and stainless steel screws provide maximum corrosion resistance.
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Corrosion Resistant
