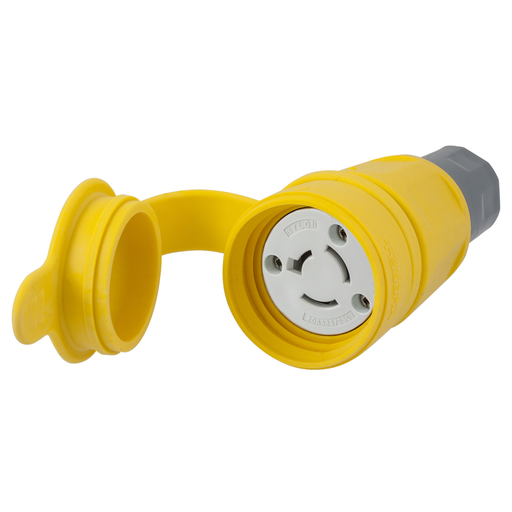

HCI HBL27W08 WATERTIGHT CONN, NON-N

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL27W08 | Codale Part # 3569659
$123.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Connector, 20A, 125/250V AC, 3 Pole, 3 Wire, Thermoplastic elastomer, NON-NEMA, Yellow

Technical Information

Amperage
20 Amp
Applications
Power Connection
Body Material
Thermoplastic Elastomer
Conductor Size
14-10 AWG
Contact Material
Nickel Plated Brass
Current
20 Amp
Grounding
Non-Grounding
Mounting Type
Cable
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

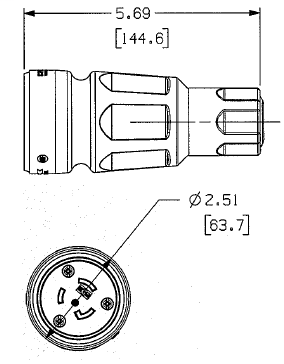

2.51 in x 2.51 in x 5.69 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Type
Female
Voltage
125/250 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585456355
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358545635
Weight
0.3000 lb

Dimensions

Height
5.69 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
