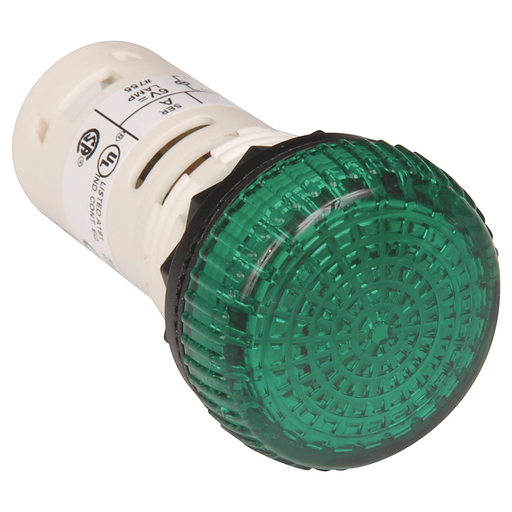

Allen Bradley 800FD-P3D5 22mm Pilot Light 800F PB

Manufacturer: Allen Bradley / Rockwell | Catalog # 800FD-P3D5 | Codale Part # 3570345
$44.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
22mm Pilot Light 800F PB

Technical Information

Connection Type
No Contact Blocks/ Latch Only
Contact Configuration
None
Enclosure Type
Type 4, 4X, 13
Lamp Type
Incandescent
Lens Color
Green
Lens Material
Monolithic
Lens Type
Optically Enhanced
Material
Monolithic
Standard
CCC,CE,CSA,CUL,KC,UL
Tc Connection
No Contact Blocks/ Latch Only
Type
22mm Pilot Light
Voltage
120 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
800F PB

General Product Info

12-Digit UPC
662074316922
Color
Green
Product UPC
66207431692
Weight
0.0400 lb
Features
  • 30 and 40 mm
  • Twist-to-release or key release
  • Anti-rotation tab provides accurate alignment and can be easily removed for use in panels without notches
  • 800FM metal operators
  • Flush or extended 2-color molded legend caps
  • Finger-safe contact blocks
  • 800FP plastic operators
  • Multi-operators
  • Panel mount sounder
  • Buttons are flush-mounted with the enclosure to reduce accidental operation
  • 22.5 mm mounting hole
  • Illuminated or non-illuminated
  • Electrical and mechanical interlocks
  • Pilot light operators
  • Compatible with Bulletin 800F accessories and enclosures
  • Reset push button
  • Made of industrial-grade thermoplastic for superior chemical resistance
  • Plastic or aluminum
  • Uses standard Bulletin 800F extended push buttons
  • Maintained or spring return
  • IP66, NEMA Type 4/4X/13
  • Ring lug capability
  • Momentary or alternate action
  • Key selector switches
  • Selector or toggle switch
  • 2-, 3-, and 4-position
  • Low back-of-panel profile (45.7 mm)
  • Mushroom or half-dome
  • Single turn potentiometer
  • Aesthetic design complements the Bulletin 800F modular line
