Panduit H100X034H1T-B 1 x 0.34 Inch 18 to 12 AWG White Polyolefin Heat Shrink Label

Manufacturer: PANDUIT | Catalog # H100X034H1T-B | Codale Part # 3571289
$2,772.74/ea
ea
Log in or register to view your price, purchase history, and more!
25 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

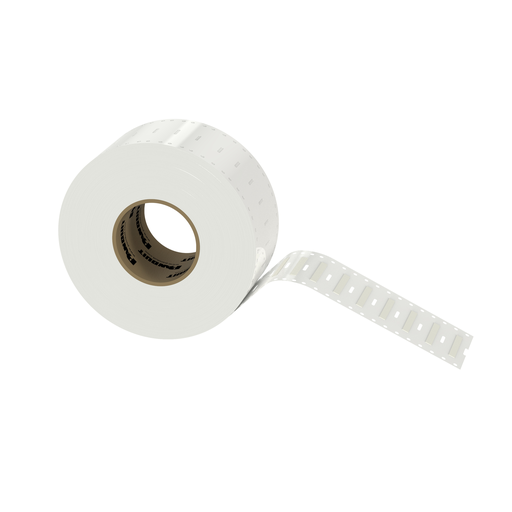

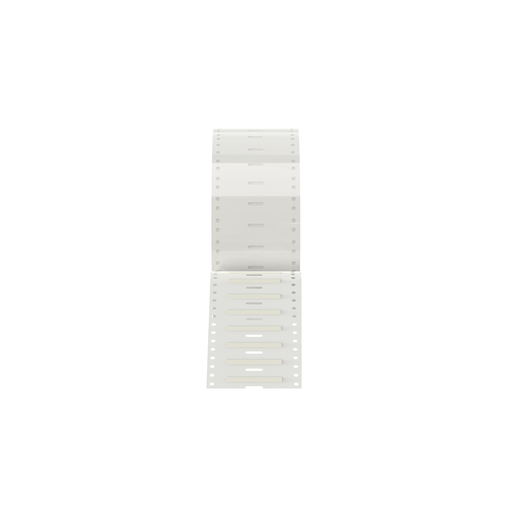

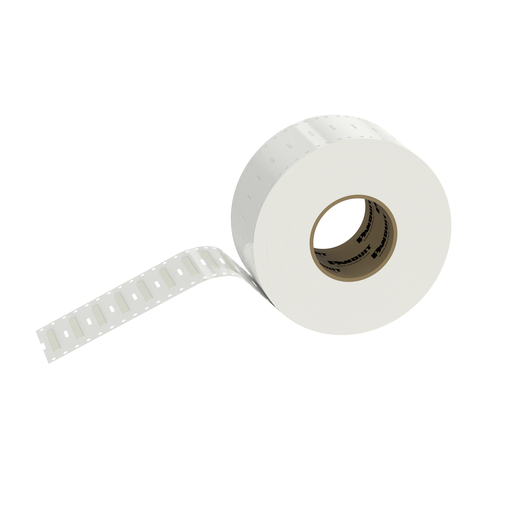

The H100X034H1T-B Military-Grade Polyolefin Heat-Shrink Label is single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Shrink ratio 3:1. 0.34" x 1" (8.6 mm x 25.4 mm). Color White. 5000 labels per roll.

Technical Information

Cable Size
18-12 AWG
Material
Polyolefin
Max Operating Temperature
135 degrees C
Min Operating Temperature
-55 degrees C
Mounting Type
Plastic Carrier
Shrink Ratio
3:1
Size
1.00 x 0.34
Temperature Rating
-67 to 275 degrees F
Type
2-Side, Pre-Cut

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Code

General Product Info

12-Digit UPC
074983522255
Color
White
Legend
OUTPUT: 001
Product UPC
07498352225
Used With
Thermal Transfer and Dot Matrix Printer

Dimensions

Diameter
4.7 mm
Height
0.34 Inch
Length
0.34 Inch
Overall Length
0 in
Width
1 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
