PAN UTP28SP1RD Cat 6 28 AWG UTP Cop

Manufacturer: Panduit | Catalog # UTP28SP1RD | Codale Part # 3571870
$39.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

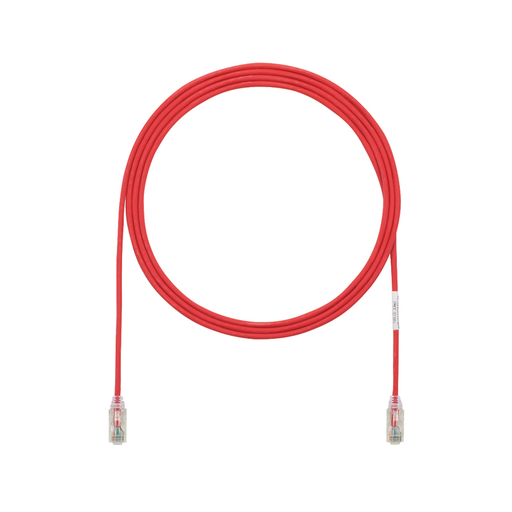

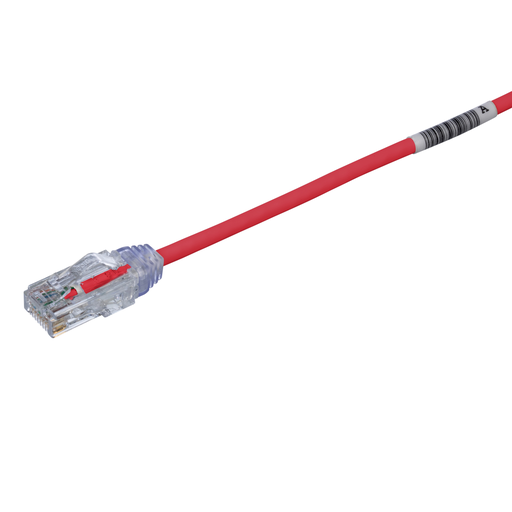

The TX6-28™ Cat 6 UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 1 foot in length, 0.150 inches (3.8mm) nominal in diameter, and red.

Technical Information

Applications
(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Digital video and broadband/baseband analog video(4) Voice/data systems(5) Voice over Internet Protocol (VoIP)
Boot Color
Clear
Cable Type
28 AWG U/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
167 degrees F
Type
Category 6, Small Diameter
Wire Size
28 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983651382
Color
Red
Jacket Material
Polyvinyl Chloride
Product UPC
07498365138
UNSPSC
43223303

Dimensions

Cable Length
1 ft
Length
1 Inch
Outer Diameter
0.15 in
Outside Diameter
3.8 mm
Overall Length
1 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Costa Rica,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
