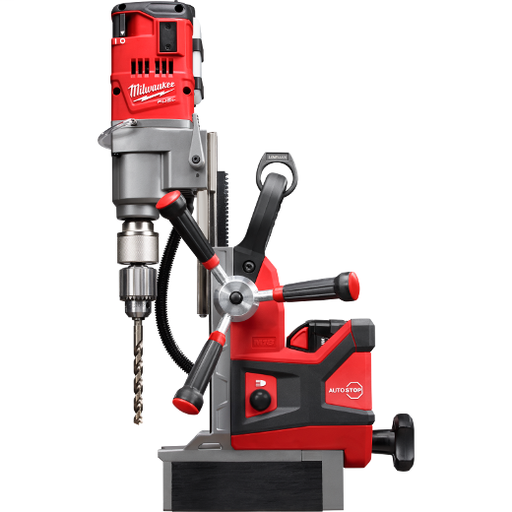

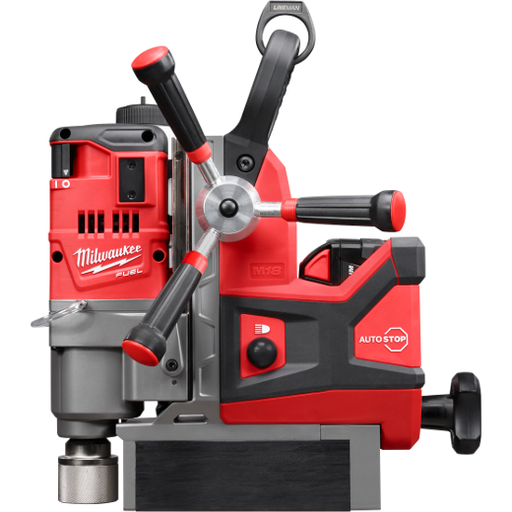

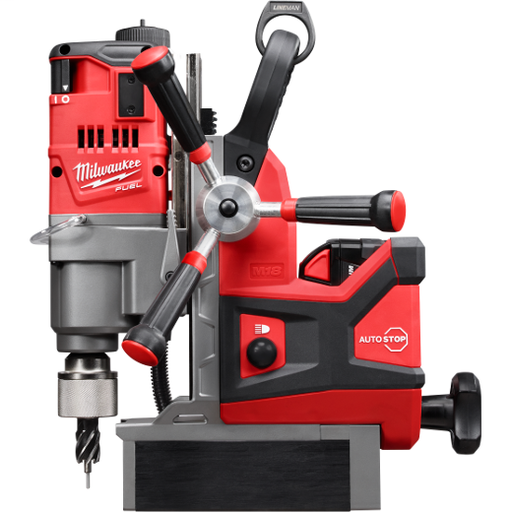

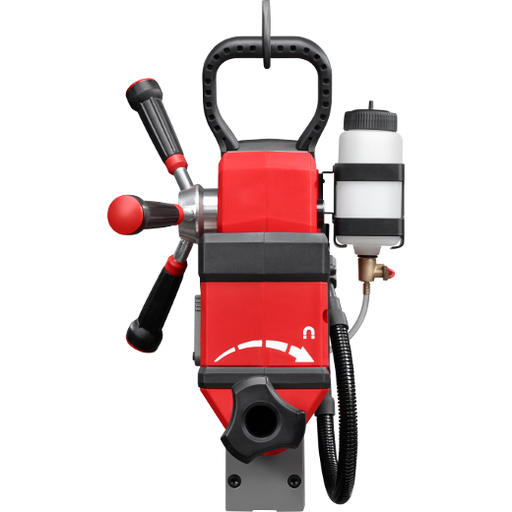

Milwaukee 2788-22 M18 FUEL™ 1-1/2" Lineman Magnetic Drill Kit

Manufacturer: Milwaukee Tool | Catalog # 2788-22 | Codale Part # 3573296

$3,401.73/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

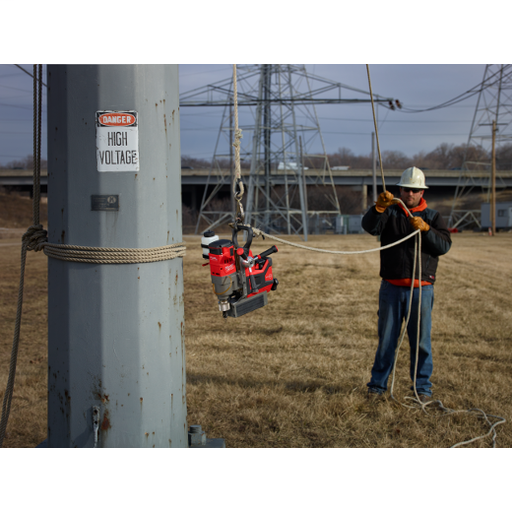

Designed for the unique environments that Linemen work in, the M18™ FUEL 1-1/2. Lineman Magnetic Drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4. steel providing a safer drilling environment in this material, and drills over (40) 13/16. holes per charge.The M18 FUEL™ 1-1/2. Lineman Magnetic Drill delivers safer drilling on .. steel by providing the industry.s strongest holding force on this material. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with Auto-Stop lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling.Powered by a Milwaukee POWERSTATE™ Brushless Motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2. annular cutter capacity. REDLINK PLUS™ Intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. REDLITHIUM™ XC5.0 batteries provide over (40) 13/16. holes in .. steel, while delivering the most durable pack construction on the market, and over 2X more recharges than the leading competitor.

Technical Information

Battery Type
M18
Power Source
Cordless
Voltage
18 Volt

Manufacturer Information

Brand
Milwaukee Tool
Sub Brand
M18™ FUEL™

General Product Info

12-Digit UPC
045242346509
Product UPC
04524234650
Weight
29.5 lb

Dimensions

Height
15-1/2 Inch
Length
13-3/4 Inch
Warranty Length
5 Years
Width
7 1/2 in
Features
  • POWERSTATE™ Brushless Motor: Delivers maximum power and provides up to 2x longer motor life.
  • REDLINK PLUS™ Intelligence Provides optimized performance and overload protection using total system communication between tool, battery and charger.
  • Self-Powered Magnet Base Operates Independently of Power Source and Delivers up to 2,000 lbs. of Holding Force
  • 1-1/2\" Annular Cutter Capacity 1/2\" Twist Bit Capacity
  • 2 Speed Gear Box: 400/690 RPM
  • Stroke Length: 5-3/4\
  • Motor Head Adjustment: 5-1/8\
Includes
  • (1) M18 FUEL™ 1-1/2\" Lineman Magnetic Drill
  • (2) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack (48-11-1850)
  • (2) 1 Retractable Pilot Pin
  • (1) Safety Strap
  • (1) Magnetic Lubrication Tank
  • (1) Carrying Case
  • (1) Chuck Key
  • (1) AC/DC Vehicle Charger
  • (1) 3/4 Weldon to 1/2 Chuck adapter
