CRS-H XDT1A3 XFMR 1PH 3KVA 480V 120

Manufacturer: Eaton Crouse-Hinds | Catalog # XDT1A3 | Codale Part # 3574273
$2,094.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

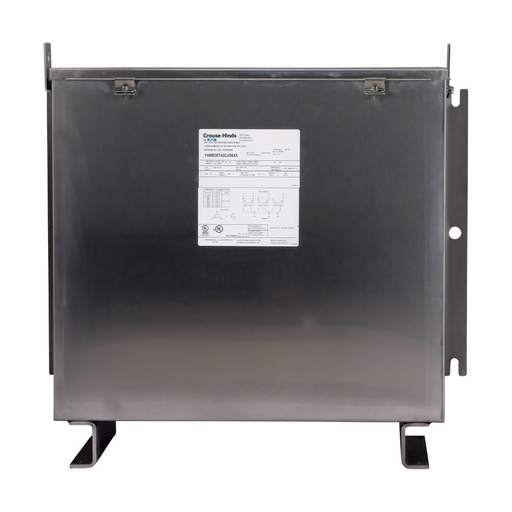

Eaton Crouse-Hinds series XDT dry-type transformer, 60 Hz, 3 kVA, Painted steel, Single-phase, 480 Vac, 120/240 Vac, Copper windings, Resin encapsulated

Technical Information

Applications
Extreme harsh and hazardous locations
Enclosure
Painted Steel
Frequency
60 Hz
Input Voltage
480V
Insulation Type
180C
Material
Steel
Max Output Current
Class I, Division 2, Groups A, B, C, D
Mounting Type
Wall
Number of Phases
1 Phase
Output Voltage
120/240V
Primary Voltage
480 V
Secondary Voltage
120 V
Temperature Rating
115 degrees C
Type
Resin Encapsulated
Wattage
3 kVA

Manufacturer Information

Brand
Crouse-Hinds
Sub Brand
XDT - Explosionsproof Dry-Type Transformer

General Product Info

12-Digit UPC
662276439351
Product UPC
66227643935
Weight
79 lb

Dimensions

Height
14.1 Inch
Length
7-1/2 Inch
Width
7.8 in
