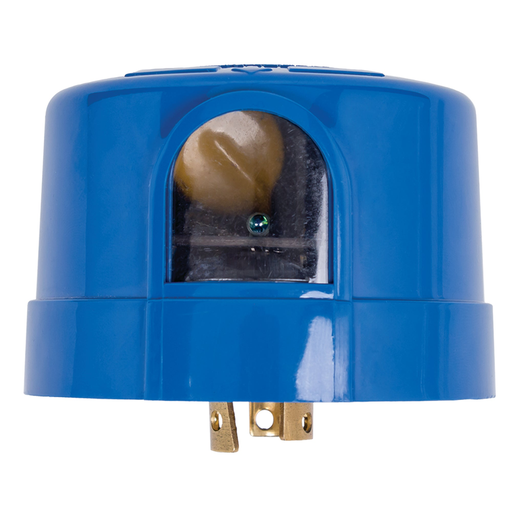

Image thumbnail 1

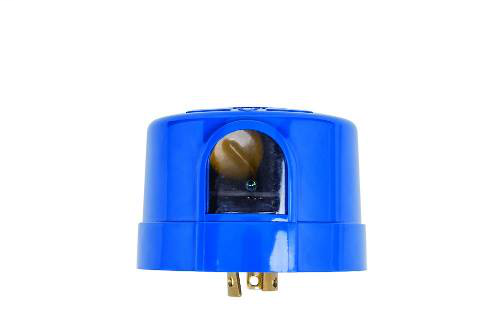

Image thumbnail 2
Image thumbnail 3
Email

Intermatic ELC4536 105 to 305 VAC 1000 W Locking Type Mount Standard Grade Electronic Photocontrol

Manufacturer: Intermatic | Catalog # ELC4536 | Codale Part # 3575780
$20.88/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
LED-compatible photocontrol features a 10-year life expectancy. Ideal for single fixture control of smaller LED fixtures that require a cost-effective solution.

Technical Information

Amperage
2000 mA
Applications
Outdoor Lighting Control
Connection Type
Lock Type
Dielectric Strength
2500 VAC
Enclosure
NEMA 410
Frequency
50/60 Hz
Input Voltage
120-277 V
Material
Plastic
Max Operating Temperature
158 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Twistlock Mount
Operating Cycles
3650
Operating Temperature
158 degrees F
Power Consumption
<0.5 WTT @ 277 VAC
Size
3.18 DIAMETER X 2.204 HEIGHT IN, 80.77 DIAMETER X 55.98 HEIGHT MM
Standard
ANSI C136.10,CAS Approval,CULus Listed,RoHS Compliant,Title CA 20 Listed,UL Recognized
Tc Connection
Lock Type
Temperature Rating
-40 to 70 degrees C
Type
Cylinder Plain, Standard
Wire Length
0 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275142961
Color
Blue
Product UPC
07827514296
Weight
0.25 lb

Dimensions

Height
2-3/4 Inch
Warranty Length
6 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Non-drift silicon light sensor with IR filter
  • All components meet 10-year life expectancy
  • Exceeds 5,000 ON/OFF switching cycles
  • Ideal for single HID and LED fixtures (up to 550 W @ 277 VAC)
  • Power-up ON delay (45-60 sec) for easy installation verification and troubleshooting
  • 510 J MOV surge protection
  • NA
