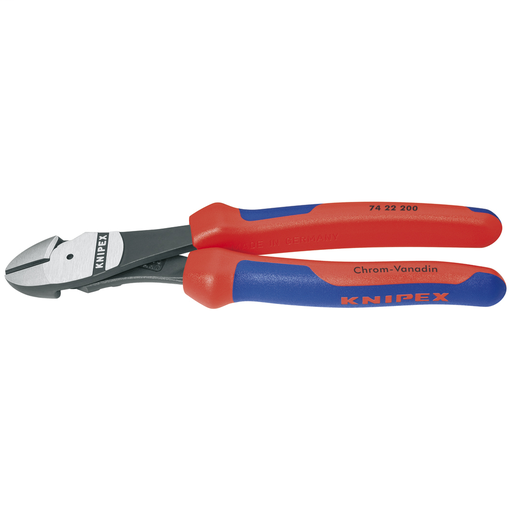

KNIPEX 74-22-200 8IN ANG DIAG CTTR

Manufacturer: Knipex Tool | Catalog # 74-22-200 | Codale Part # 3581414
$137.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
20% less effort required compared to conventional diagonal cutters of the same length. Forged-on axle for heavy-duty work. For very tough, continuous use. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire. Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.

Technical Information

Angle
12 degrees
Applications
For Very Tough, Continuous Use
Handle Type
Multi-Component Grip, Ergonomic
Head Style
Polished
Jaw Type
12 Angled, Bevel, Oval
Max Wire Size
1/8 in
Radius
11/64 in
Surface Finish
Polished
Type
High-Leverage

Manufacturer Information

Brand
Knipex

General Product Info

12-Digit UPC
843221005177
Color
Blue/Red
Finish
Black
Product UPC
84322100517
Weight
300 g

Dimensions

Height
51 mm
Length
200 mm
Overall Length
200 mm
Width
93 mm
Features
  • 20% less effort required compared to conventional diagonal cutters of the same length
  • Forged-on axle for heavy-duty work
  • For very tough, continuous use
  • High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
  • Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
  • 12? angle head for hand clearance when cutting
  • Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
