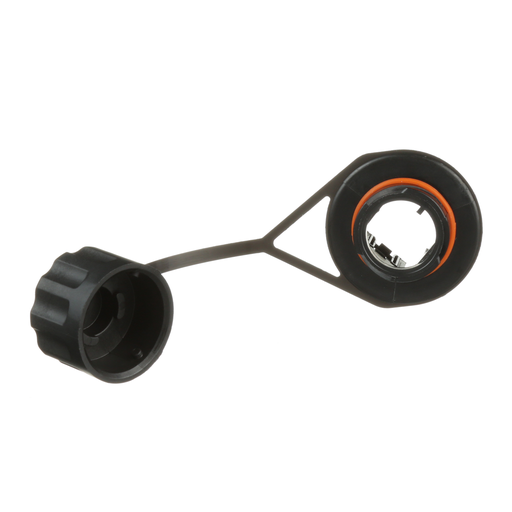

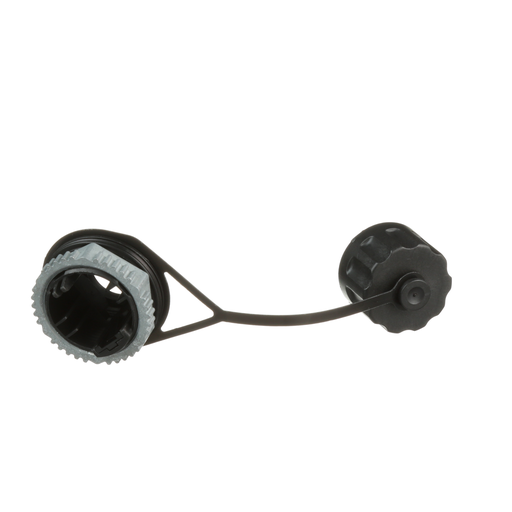

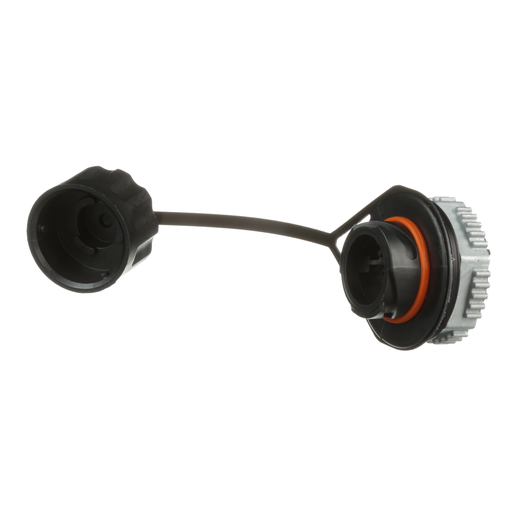

Panduit IAEBH5ES Industrial Cat 5e RJ45 Shielded Bulkhead Connector

Manufacturer: PANDUIT | Catalog # IAEBH5ES | Codale Part # 3581446
$142.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The IndustrialNet™ Cat 5e shielded bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The shielded bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.

Technical Information

Applications
Shielded
Cable Size
26 AWG
Cable Type
Category 5e
Conductor Size
26 AWG
Material
Copper, Metal Housing
Performance Level
Category 5e
Type
RJ45 8(8), Shielded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
IndustrialNet™

General Product Info

12-Digit UPC
074983815999
Color
Black
Product UPC
07498381599
Weight
0.1700 lb

Dimensions

Depth
42.3 mm
Height
5.34 Inch
Width
1.49 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO11801 Class D standards at swept frequencies 1 to 100 MHz, Meets all ODVA Ethernet/IP^ electrical and mechanical performance requirements, Protects and seals connections against dust and water immersion to ANSI/IEC 60529-2004, Meets ANSI/TIA-1096-A, Rated IP67/68 for dust protection and temporary liquid immersion, Rated UL Type 12, 6/6P, 4X, RoHS compliant
