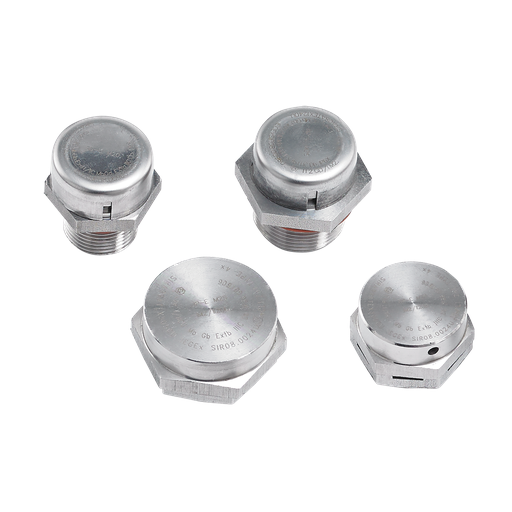

Product image for Hoffman EXEBDM20SS6 Hazardous Location Breather Drains, 40x 40x 25mm, SS Type 316
Image thumbnail 0
Image thumbnail 1
Email

Hoffman EXEBDM20SS6 Hazardous Location Breather Drains, 40x 40x 25mm, SS Type 316

Manufacturer: nVent Hoffman | Catalog # EXEBDM20SS6 | Codale Part # 3582165
$152.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Hazardous Location Breather Drains prevent moisture build-up within hazardous approved enclosures while maintaining enclosure UL Type rating. Drains are to be used when an enclosure is subject to fluctuations in temperature which can lead to the formation of condensation and a subsequent moisture build-up. These drains allow air within an enclosure to breathe with the surrounding atmosphere, preventing condensation and any potential damage to electrical equipment.

Technical Information

Applications
Prevent Moisture Build-Up within Hazardous Approved Enclosures and Industrial use
Material
Stainless Steel
Size
40x40x25mm
Temperature Rating
-58 to 185 degrees F
Thread Length
10 mm
Trade Size
M20
Type
Hazardous Location Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510271657
Environmental Conditions
IP66
Finish
Brushed
Product UPC
78351027165
Weight
0.2 lb

Dimensions

Height
1 Inch
Length
8 Inch
Width
5.00 in
DISK UNSPSC
39121321
Features
  • Reduce corrosion that can limit the life of internal electrical and electronic components
  • Prevent condensation when installations are subject to fluctuations in temperature in hazardous locations
  • Effectively drain any water present within the enclosure
  • Minimize moisture build-up within the enclosure by allowing air in the enclosure to breathe with surrounding atmosphere
  • Position at the lowest point of an enclosure to ensure optimal draining of any moisture
  • Maintain enclosure's UL Type rating when properly installed
  • Available for Increased Safety (Ex e) and Flameproof (Ex d) applications
  • Ex e Breather Drains:
  • Includes castellated nut and nitrile O-ring
  • 10mm thread length
  • Install in a clearance hole 0.5 to 1.0mm larger than major diameter, or in a tapped hole
  • Operating temperature of -58 F (-50 C) to 185 F (85 C)
  • Ex d Breather Drains:
  • Includes silicone O-ring
  • 16mm thread length
  • Install in a tapped hole
  • Ex d Breather Drains operating temperature of -22 F (-30 C) to 302 F (150 C)
