Hubbell HBL28W76 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30P Yellow Locking Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL28W76 | Codale Part # 3582169
$130.35/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page

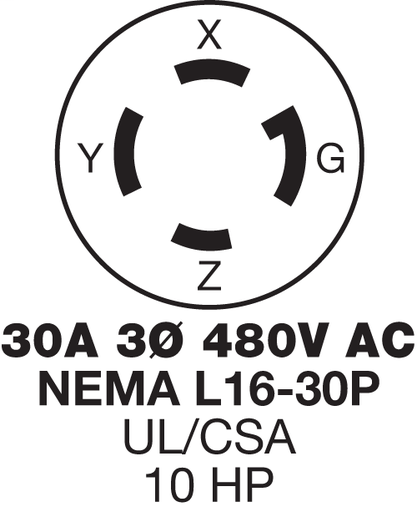

Watertight Devices, Twist-Lock® Plug, 30A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-30P, Yellow.

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S Min, 8/3 S, 8/4 S, 10/5 S Max AWG
Contact Material
Nickel Plated Brass
Cord Size
3/8 - 1 in
Cord Type
SJ, S
Current
30 Amp
Dielectric Strength
3500 VAC
Material
Thermoplastic
NEMA
L16-30P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

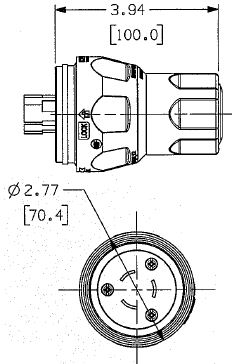

2.77 in x 2.77 in x 3.94 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Industrial Grade
Voltage
480 Volt
Wire Count
4
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131726
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358513172
Weight
0.7650 lb

Dimensions

Height
3.94 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
