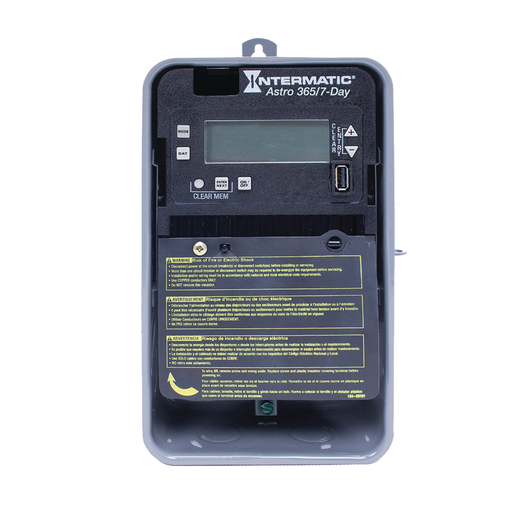

Intermatic ET2815CR T/S-ELEC,1XSPDT,ASTRO,3R STL

Manufacturer: Intermatic | Catalog # ET2815CR | Codale Part # 3582942
$613.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The ET2000 Series offers an easy-to-use user interface while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Technical Information

Action
SPDT
Amperage
30 Amp
Applications
For Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Outdoor
Conductor Size
14-8 AWG
Connection Type
Wire Lead
Contact Configuration
1 NO, 1 NC
Contact Rating
20 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive), 20 AMP @ 120/240 VAC (Inductive), 20 AMP @ 120/240 VAC (Magnetic Ballast), 10 AMP @ 120/277 VAC (Electronic Ballast)
Enclosure
Type 3R Steel
Enclosure Type
NEMA 3R
Frequency
50/60 Hz
Input Voltage
120-277 V
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
-40 to 155 degrees F, -40 to 68 degrees C
Power Consumption
3 W
Standard
Meet Title 20/24 Compliance,UL Rating
Switch Type
SPDT
Tc Connection
Wire Lead
Temperature Rating
-40 to 155 degrees F
Type
Electronic
Voltage
120-277 VAC
Wattage
3 Watt
Wire Size
18-10 AWG

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275148246
Color
Gray
Product UPC
07827514824

Dimensions

Depth
3-5/8 Inch
Height
10-1/8 Inch
Warranty Length
2 yr
Width
6.5 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • 100-hour supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy
