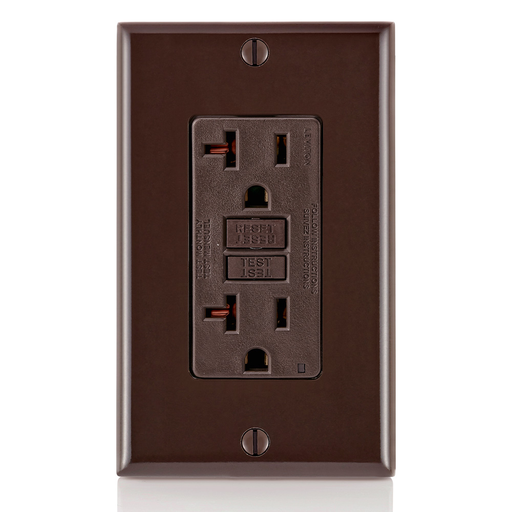

Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

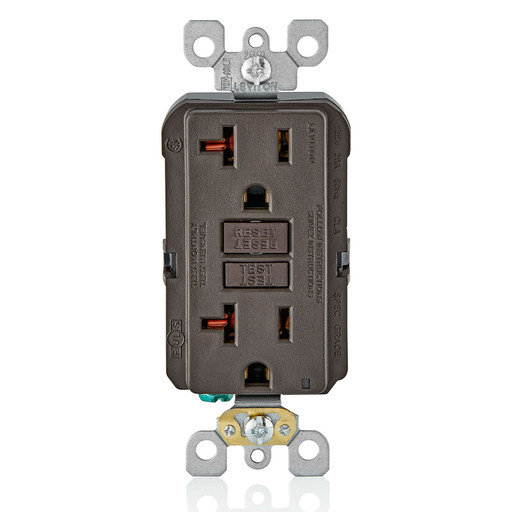

Image thumbnail 4

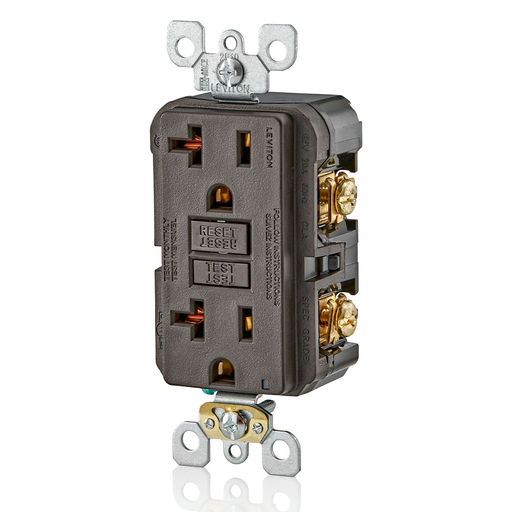

Image thumbnail 5
Email

LEV GFNT2 BR ST NON TR GFCI 20A125V

Manufacturer: Leviton | Catalog # GFNT2 | Codale Part # 3583015
$35.39/ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, Residential/Commercial applications, back and side wired, heavy duty, wallplate/faceplate and self grounding clip included - Brown

Technical Information

Amperage
20 Amp
Applications
For Residential use
Body Material
Polycarbonate,Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Thermoplastic,Thermoplastic,Thermoplastic
Grade
Residential
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate
Mounting Type
Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
CSA File Number LR18416,File Number E92074,UL
Temperature Rating
-35 degrees C to 66 degrees C
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Self-Test Slim
Voltage
125 Volt
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477712733
Color
Brown
Finish
Matte
Product UPC
07847771273
Weight
0.3670 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features
  • Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
  • On initial power up, tests the GFCI within 3 seconds
  • Auto-monitoring exceeds the UL requirement
  • Auto adapts and shifts to more frequent testing if potential problem is detected
  • Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
  • Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Electronics are designed to minimize any false triggers
  • Reduced depth makes it easier to install in any electrical box, even shallow ones
  • Terminals allow for easy wiring options back and side wire capable
  • External back wire clamps provide visual indication of proper wire seating
  • Withstands high torque and resists wire pullout
  • Standard brass self-grounding clip
  • Trip threshold meets or exceeds UL requirements for tripping time
  • Improved immunity to high-frequency noise reduces nuisance tripping
  • Advanced electronics design provides superior resistance to electrical surges and over-voltages
  • Compatible with all Decora devices and wallplates; available in select Decora colors
  • UL Fed Spec WC-596 rated
  • SAFE - Delivers continuous ground fault protection
  • SELF TESTING - Automatically self-tests to ensure it can respond to ground fault
  • SIMPLE - Status indicator light provides simple, intuitive feedback
Patents
  • CA2730014
  • MX302458
  • MX308495
  • MX344697
  • US10483066
  • US11456138
  • US7697252
  • US8587914
  • US8599522
  • US8944859
  • US9053886
  • US9276393
Color Variations
  • Black
NEMA
  • 5-20R
