Leviton 2410 20amp 125/250v Black Locking Single Flush Receptacle, 3-Pole 4-Wire Non-Grounding, Industrial Grade

Manufacturer: Leviton | Catalog # 2410 | Codale Part # 3583062
$78.61/ea
ea
Log in or register to view your price, purchase history, and more!
32 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 125/250 Volt, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, V-0-MAX, Black

Technical Information

Amperage
20 Amp
Applications
Commercial
Base Material
Valox,Valox
Body Material
Nylon
Conductor Size
14-8 AWG
Connection Type
Back and Side Wired
Cover Material
Valox
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Ultramid
Flamability Class
Rated V-0 Per UL 94
Grounding
Grounding
Horsepower
1 hp
Material
PBT
Mounting Type
Box, Recessed/Flush

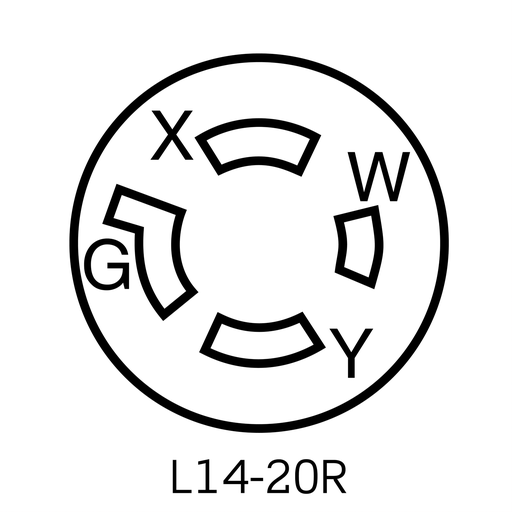

NEMA
L14-20R
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
Tc Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
125 Volt
Wire Count
4
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477809327
Color
Black
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
Product UPC
07847780932
Weight
0.3080 lb

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Please Contact Customer Service
CSA
C22.2 No. 42
NEMA
  • L14-20R
Features
  • Levitons Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
  • Ideal for generators, transfer switches, welding equipment, and RV camper power
