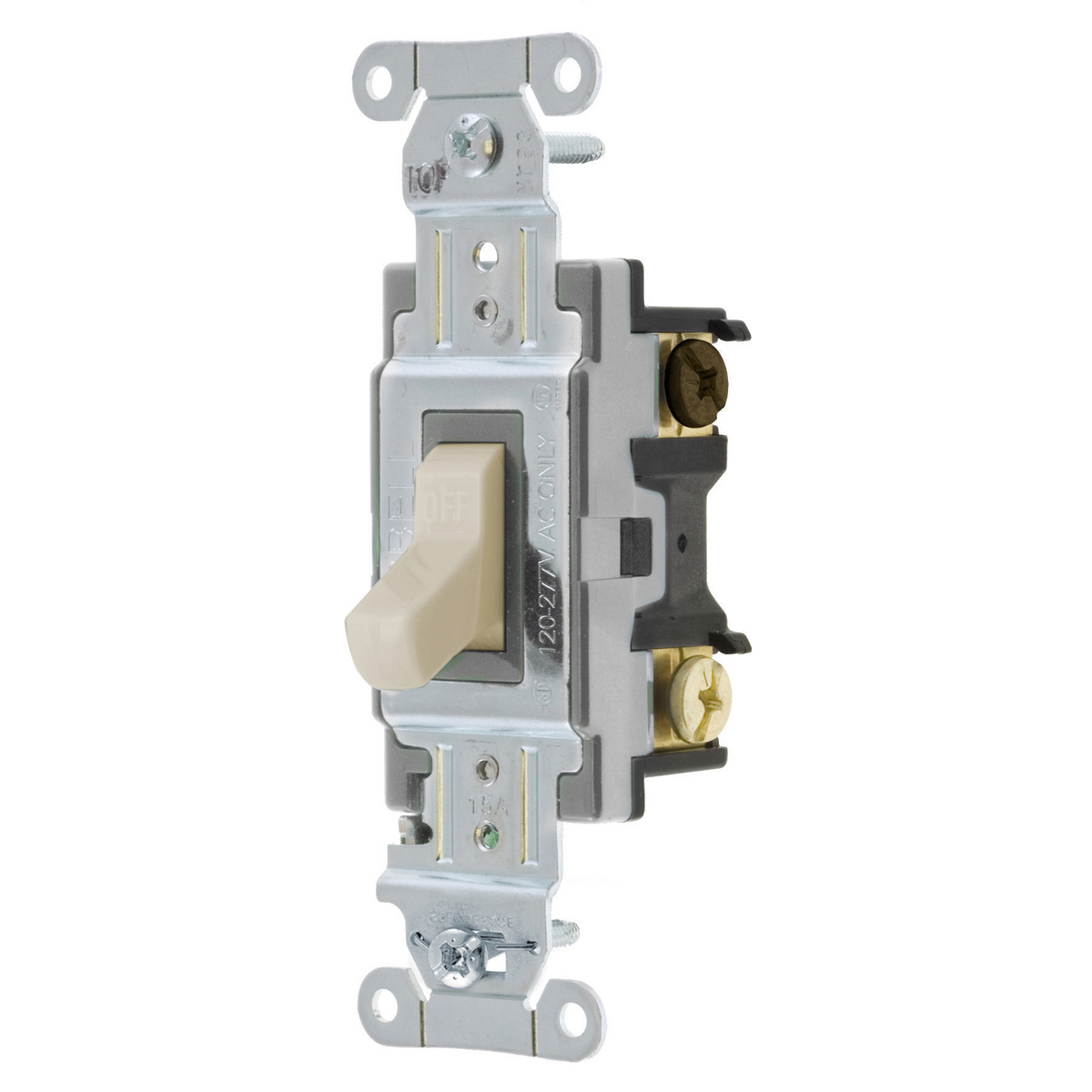

Hubbell Wiring Devices CS315LA 15 Amp 120 to 277 VAC 3-Way Light Almond Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CS315LA | Codale Part # 3585795
$4.03/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 15A 120/277V AC, Side Wired, Light Almond Toggle.

Technical Information

Amperage
15 Amp
Conductor Size
14-10 AWG
Current
15 Amp
Grade
Commercial
Material
Nylon
Number of Poles
1-1 Pole
Operating Temperature
-40 degrees C
Standard
UL
Style
Three Way
Type
Toggle
Voltage
120-277 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585151212
Color
Almond
Product Series
General Purpose
Product UPC
78358515121
Weight
0.15 lb

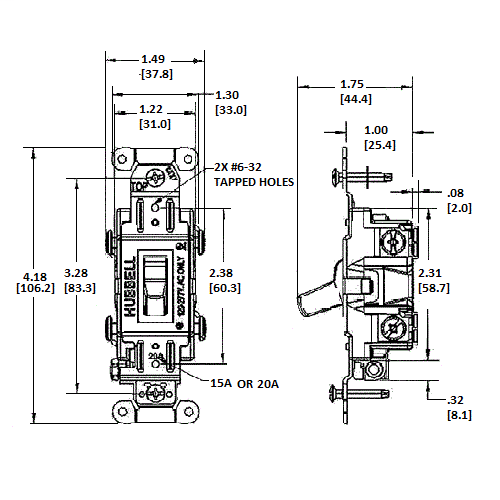

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant
