PAN STPCH0.5MBBU Cat 5e 26 AWG Shie

Manufacturer: PANDUIT | Catalog # STPCH0.5MBBU | Codale Part # 3585845
$74.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet

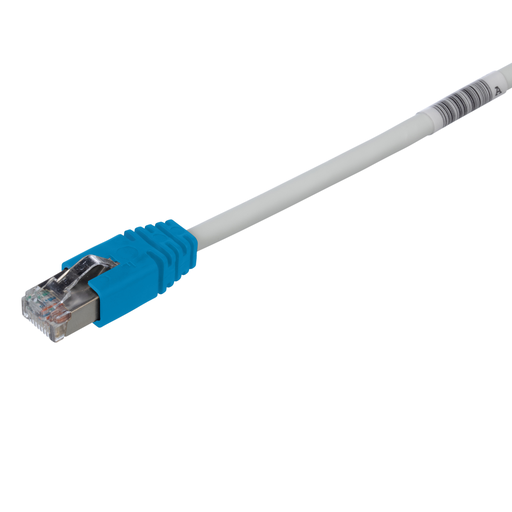

The TX5e™ Cat 5e Shielded Patch Cord is constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable with Pan-Plug™ modular plugs on each end. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The plugs have a blue boot. The patch cord is 0.5 meters in length and international gray.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, Token Ring 4/16, Voice/Data Systems, Voice Over Internet Protocol (VoIP)
Boot Color
Blue
Cable Type
26 AWG F/UTP
Conductor Material
Copper
Conductor Size
26 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Max Operating Temperature
60 degrees C
Min Operating Temperature
-10 degrees C
Performance Level
Category 5e
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
140 degrees F
Type
Category 6A
Wire Size
26 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983718320
Color
Blue
Jacket Material
High-Density Polyethylene
Product UPC
07498371832
UNSPSC
43223303

Dimensions

Cable Length
0.5 m
Length
1.64 Inch
Outer Diameter
5.1 mm
Outside Diameter
5.2 mm
Overall Length
0.5 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
